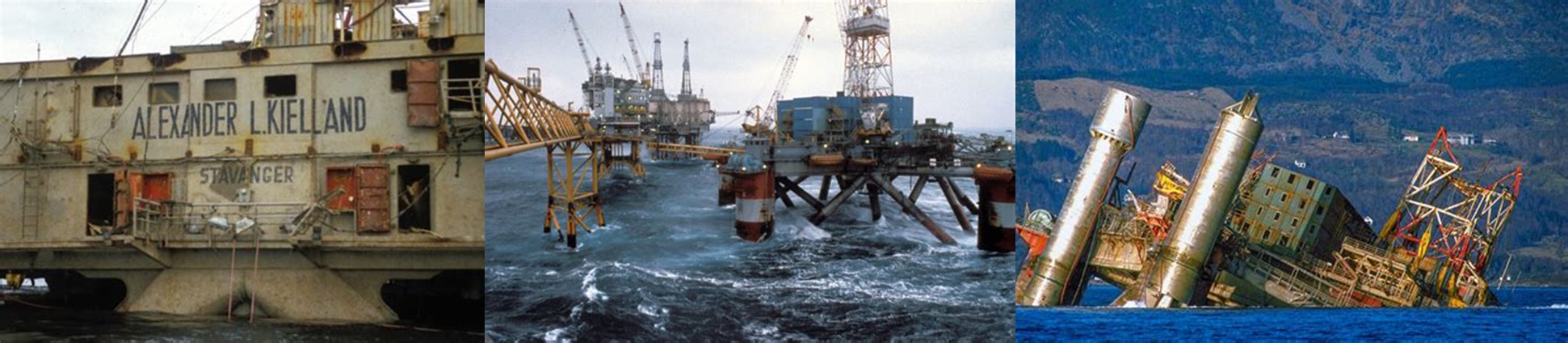

March 27, 1980, 6:30 PM. The semi-submersible accommodation platform Alexander L. Kielland floated peacefully in the North Sea, housing 212 offshore workers during their shift rotation. Within minutes, catastrophic failure of a critical weld connection triggered the platform's complete collapse, claiming 123 lives in one of Norway's worst industrial disasters.
Investigation revealed that the catastrophe began with a fatigue crack in a fillet weld connecting a hydrophone mounting bracket to the platform's main bracing system. What appeared to be a minor attachment detail—a simple plate-to-weld connection carrying minimal design loads—became the trigger point for progressive structural failure that brought down an entire offshore platform.
The Alexander L. Kielland disaster demonstrated that the interface between plates and welds represents one of the most critical yet poorly understood aspects of structural design. The failure showed how stress concentrations at weld toes, combined with inadequate understanding of load transfer mechanisms, could transform a seemingly insignificant detail into a catastrophic failure point that challenged fundamental assumptions about weld design.
τ_weld = F_applied / (L_weld × t_weld)
This elementary weld shear stress relationship—force divided by weld area—governed traditional weld design and continues to appear in textbooks today. But the Alexander L. Kielland tragedy revealed that actual stress distributions in plate-to-weld interfaces bear little resemblance to these simple uniform assumptions, making sophisticated stress analysis essential for reliable design.
The Engineering Foundation: Understanding Stress Flow in Welded Connections
The Engineering Foundation: Understanding Stress Flow in Welded Connections
The transfer of stress from plates into welds represents one of the most complex phenomena in structural engineering, involving sophisticated three-dimensional stress distributions, material property variations, and geometric effects that challenge conventional analysis methods. Understanding these mechanisms becomes essential for preventing the type of catastrophic failures that claimed the Alexander L. Kielland.
Stress concentrations at weld toes create localized stress amplifications that can reach 3.0 times nominal values, transforming apparently adequate connections into critical failure points. These concentrations arise from the abrupt geometric transitions inherent in welded joints, where stress flow must redistribute from the base plate through the relatively small cross-sectional area of the weld metal.
The fundamental challenge lies in recognizing that welds do not simply replace the material they connect—they create entirely new stress distribution patterns that depend on weld geometry, material properties, and loading direction. The interface between plate and weld involves complex interactions between heat-affected zone properties, residual stresses from welding, and the geometric stress concentrations that govern fatigue behavior.
K_t = σ_max / σ_nominal = f(θ_weld, ρ_toe, t_plate/t_weld)
This stress concentration factor relationship demonstrates how weld angle θ_weld, toe radius ρ_toe, and thickness ratios create stress amplifications that simple area-based calculations cannot predict. The geometric parameters interact in complex ways that require sophisticated analysis to evaluate accurately.
Modern weld stress analysis recognizes multiple distinct stress components that act simultaneously within welded connections. Primary stresses from applied loads combine with secondary stresses from geometric constraints and residual stresses from the welding process to create complex multiaxial stress states that govern both static strength and fatigue life.
σ_total = σ_primary + σ_secondary + σ_residual + σ_thermal
Each stress component requires different analysis approaches and acceptance criteria, making comprehensive weld evaluation a sophisticated engineering discipline that extends far beyond simple strength calculations.
The directional sensitivity of welded connections adds another layer of complexity that challenges design intuition. Fillet welds exhibit dramatically different strength characteristics depending on loading direction, with transverse loading often producing failure at stress levels significantly below those predicted by simple shear analysis.
F_transverse / F_longitudinal = 0.85 × (F_u,weld / F_y,base)
This directional strength ratio shows how transverse loading reduces weld capacity compared to longitudinal loading, with the reduction factor depending on the relative strengths of weld metal and base material. The relationship demonstrates why weld orientation becomes a critical design consideration that affects connection reliability.
Real-World Applications: Where Plate-to-Weld Analysis Prevents Disasters
Real-World Applications: Where Plate-to-Weld Analysis Prevents Disasters
Sophisticated plate-to-weld stress analysis has become essential across industries where welded connections carry critical loads under demanding service conditions. From offshore platforms to pressure vessels, understanding stress transfer mechanisms can mean the difference between reliable service and catastrophic failure.
Pressure vessel applications subject plate-to-weld connections to some of the most demanding service conditions in engineering. Nozzle attachments, support lugs, and reinforcement details all create complex stress distributions where simple weld analysis proves inadequate. The combination of pressure loading, thermal stresses, and geometric discontinuities requires sophisticated analysis methods that account for three-dimensional stress effects.
Bridge construction utilizes welded connections throughout critical load paths where fatigue performance determines structural life. Deck-to-girder connections, splice joints, and detail attachments all involve plate-to-weld interfaces that experience millions of load cycles from traffic loading, making accurate stress analysis essential for preventing premature fatigue failures.
Our repository's Plate Stress to Fillet Weld Stress calculation (downloaded over 1,010 times with a 3.3-star rating), developed by community contributors, addresses these complex design scenarios through comprehensive analysis of stress transformation mechanisms that govern plate-to-weld load transfer.
Industrial equipment manufacturing demands welded connections capable of transferring loads between components with different geometries, material properties, and loading requirements. Crane structures, pressure vessels, and heavy machinery all rely on plate-to-weld connections that must maintain structural integrity throughout extended service lives under variable loading conditions.
Offshore platform construction presents particularly challenging applications where plate-to-weld connections must resist not only design loads but also fatigue from wave action, corrosion from saltwater exposure, and dynamic amplification from vessel motion. The lessons learned from disasters like the Alexander L. Kielland have driven development of sophisticated analysis methods specifically for marine applications.
Building construction increasingly relies on welded moment connections that transfer forces between beams and columns through complex plate-to-weld interfaces. These connections must develop the full strength of connected members while maintaining ductility for seismic loading, requiring careful attention to stress transfer mechanisms and weld detailing.
The gowelding.com Weld Calculations resource (1,567 downloads, 4.5-star rating) provides comprehensive weld analysis capabilities, while Analysis & Design of Weld Groups (754 downloads, 4.3-star rating) addresses complex multi-weld connection behavior.
The Hidden Complexity: Why Simple Weld Formulas Lead to Failures
The Hidden Complexity: Why Simple Weld Formulas Lead to Failures
The deceptive simplicity of basic weld calculations masks extraordinary complexity that emerges from the interaction of geometric effects, material property variations, and loading conditions that combine to create failure mechanisms far more sophisticated than elementary analysis can capture.
Heat-affected zone behavior introduces material property gradients that challenge fundamental assumptions underlying simple weld analysis. The welding process creates regions of altered microstructure with different strength, ductility, and fatigue characteristics that affect load transfer mechanisms in ways that uniform material assumptions cannot predict.
σ_HAZ = σ_base × f(peak_temp, cooling_rate, chemistry)
This heat-affected zone stress relationship demonstrates how welding thermal cycles alter local material properties through complex metallurgical processes that depend on peak temperature, cooling rate, and material chemistry in ways that require specialized knowledge to evaluate properly.
Residual stress effects from welding create locked-in stress fields that superimpose on service loads to produce total stress levels far exceeding those predicted by applied load analysis alone. These residual stresses can approach yield strength levels and significantly affect both static strength and fatigue performance of welded connections.
While these equations look intimidating on paper, our XLC add-in displays them as easily readable mathematical equations directly in Excel, transforming the complex theoretical relationships governing plate-to-weld stress transfer into practical design tools that engineers can confidently apply without requiring specialized welding engineering expertise.
Three-dimensional stress effects at weld intersections create complex stress states that defy simple two-dimensional analysis approaches. When multiple welds meet at common points, stress flow patterns develop that cannot be predicted by analyzing individual welds in isolation, requiring sophisticated analysis methods that account for interaction effects.
σ_intersection = Σ(σ_individual) × K_interaction × SCF_geometry
This intersection stress relationship shows how individual weld stresses combine with interaction factors K_interaction and geometric stress concentration factors SCF_geometry to create total stress levels that exceed simple superposition predictions, making intersection analysis a critical aspect of complex welded connections.
Fatigue crack initiation and propagation mechanisms in welded connections follow patterns that challenge conventional fatigue analysis approaches. Cracks typically initiate at weld toes due to geometric stress concentrations, then propagate through either the heat-affected zone or base material depending on relative material properties and stress gradients.
Weld quality variations introduce uncertainty that affects both strength and fatigue performance in ways that nominal design calculations cannot capture. Incomplete penetration, porosity, and geometric irregularities all influence actual stress distributions and failure mechanisms, making quality control an integral part of reliable weld design.
Professional Approach: Mastering Plate-to-Weld Interface Design
Professional Approach: Mastering Plate-to-Weld Interface Design
The critical nature of plate-to-weld connections demands systematic professional approaches that extend beyond simple strength calculations to encompass fatigue analysis, quality control procedures, and failure mode evaluation that address the complex mechanisms governing welded connection behavior.
The ExcelCalcs community shares a passion for making accurate calculations with MS Excel, providing a platform where engineers can access expert knowledge through our comments feature and benefit from collective experience with weld stress analysis across diverse applications from pressure vessels to offshore platforms.
Professional weld design begins with comprehensive stress analysis that considers all components of the total stress field including primary stresses from applied loads, secondary stresses from geometric constraints, and residual stresses from the welding process. Each component requires different analysis methods and acceptance criteria based on established codes and standards.
Quality control procedures become essential given the sensitivity of welded connections to fabrication variables that affect both strength and fatigue performance. Weld profile requirements, penetration specifications, and defect acceptance criteria all influence actual stress distributions and failure mechanisms in ways that require careful specification and verification.
Our repository's worked solutions give engineers a head start in implementing sophisticated weld stress analysis while building on existing Excel skills with a much faster learning curve than specialized finite element packages that require extensive training and annual licensing costs often exceeding thousands of dollars.
Material selection considerations extend beyond simple strength properties to include weldability characteristics, heat-affected zone behavior, and compatibility between base metals and weld consumables. The interaction between different materials in the welded joint becomes particularly important in applications involving dissimilar metals or special service conditions.
Inspection and testing requirements must address the limitations of various non-destructive testing methods while ensuring adequate detection of critical defects. Visual inspection, liquid penetrant testing, and radiographic examination all have specific capabilities and limitations that affect their suitability for different weld configurations and service requirements.
Design optimization strategies seek to minimize stress concentrations and improve fatigue performance through proper weld sizing, geometry selection, and detail arrangement. Quality assurance through comments feature and peer review helps identify potential stress concentration sources and optimization opportunities that improve connection reliability.
Repository Showcase: Comprehensive Weld Stress Analysis Solutions
Repository Showcase: Comprehensive Weld Stress Analysis Solutions
Beyond our flagship Plate Stress to Fillet Weld analysis, engineers can access specialized calculations including gowelding.com Weld Calculations (1,567 downloads, 4.5-star rating), WELDGRP.xls (803 downloads, 4.6-star rating), and Analysis & Design of Weld Groups for complex connection analysis (754 downloads, 4.3-star rating).
For specialized applications, our repository includes Static load capacity of the parallel loaded fillet welds.xls (468 downloads, 4.0-star rating), Ultimate Strength of Weld Groups.xls for limit state analysis (423 downloads, 4.6-star rating), and Weld line assessment - 2 horizontal welds.xls (400 downloads, 4.4-star rating). International practitioners can utilize Capacities of Bolts and Welds to BS449: Part 2 for British standards (380 downloads, 4.8-star rating), while fatigue applications can access EC3 Fatigue Damage in Steel Welds.xls designed for European code compliance (357 downloads, 3.9-star rating). Structural engineers can utilize AISC-Weld calculation for built up beams for composite member design (439 downloads, 4.2-star rating). This diversity ensures that regardless of your welding application or specific code requirements, our community has developed comprehensive stress analysis solutions to meet your connection design needs.
Advanced weld analysis tools include Plate Stress to Partial Penetration Fillet Weld Stress for specialized joint configurations (349 downloads, 3.6-star rating), Static load capacity of the transverse-loaded fillet welds.xls for directional loading analysis (333 downloads, 4.7-star rating), and WELDGRP Metric.xls for international unit applications (326 downloads, 4.7-star rating). The comprehensive nature of our weld stress library reflects decades of collective engineering experience with both traditional methods and modern limit states approaches.
Start Your Weld Stress Analysis Journey Today
Start Your Weld Stress Analysis Journey Today
The complexity of modern plate-to-weld interfaces demands calculation tools that incorporate sophisticated stress transformation methods while remaining accessible to practicing engineers. Our Plate Stress to Fillet Weld Stress calculation represents the culmination of extensive community development, incorporating stress concentration effects, directional sensitivity, and geometric transformation relationships into a comprehensive analysis tool that handles the complexity of welded connection design.
We extend our appreciation to the engineering contributors who developed these essential calculation tools, transforming the theoretical complexities of weld stress analysis into practical design solutions that serve engineers worldwide across pressure vessel, structural, and industrial applications. Their expertise has created calculation templates that continue to evolve with welding technology advances and incorporate lessons learned from both successful applications and documented failures like the Alexander L. Kielland.
Join the ExcelCalcs community with a $99 professional subscription—insignificant compared to MathCAD, Mathematica, or Maple—and gain access to our complete repository of weld stress analysis solutions. Students and educators benefit from our 50% academic discount, while free trials allow you to explore the comprehensive capabilities of our plate-to-weld calculation tools without commitment.
Join the ExcelCalcs community today and discover why thousands of engineers trust our templates for their most critical welded connection design challenges. Because when plate-to-weld interfaces must transfer loads safely and reliably, you need calculations that understand the sophisticated engineering behind stress transformation at the critical interface.
