When Deep Foundations Aren't Deep Enough: The Transcona Disaster

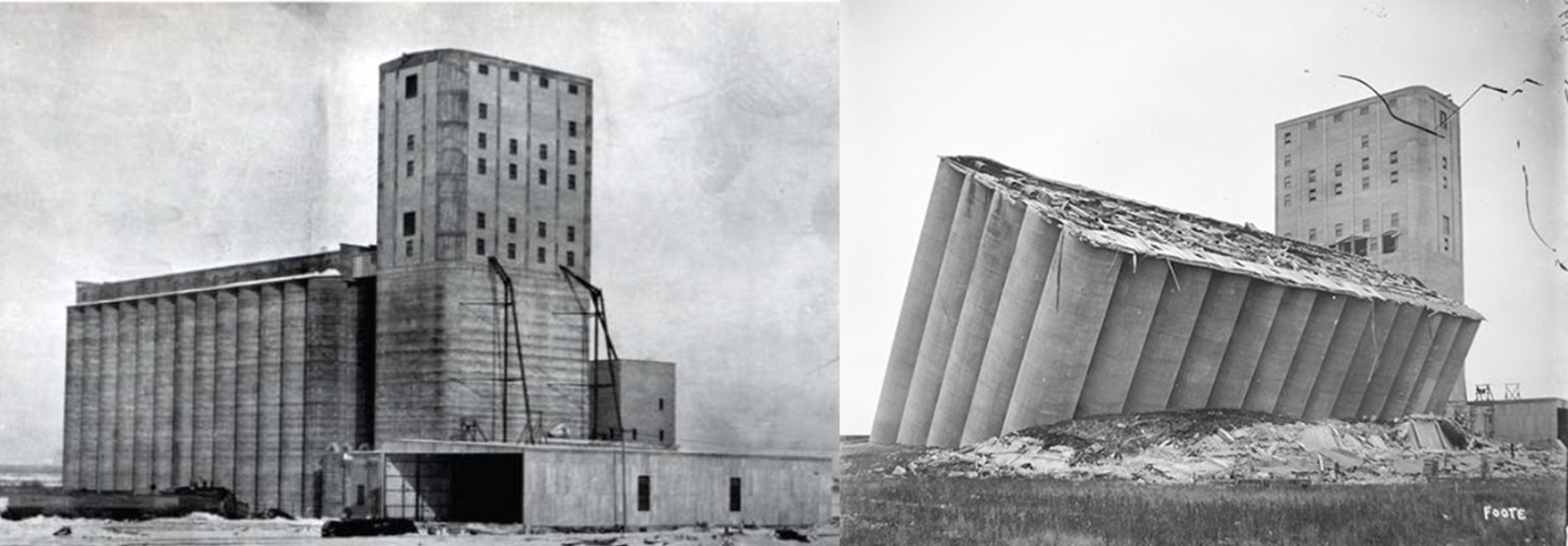

On October 18, 1913, the Canadian Pacific Railway's massive grain elevator in Transcona, Manitoba, suddenly began to settle. Within 24 hours, the entire 77-foot by 195-foot reinforced concrete structure had tilted to a catastrophic 27 degrees from vertical, its western edge sinking 24 feet below ground level while the eastern edge rose 5 feet above its original position. The 1,000,000-bushel capacity elevator, loaded to 87.5% of its capacity with grain, had experienced one of the most dramatic foundation failures in engineering history.
The failure occurred not because the engineers lacked skill, but because the science of soil mechanics was still in its infancy. The foundation design relied on small-scale plate loading tests conducted on the upper "blue gumbo" clay layer, which indicated a safe bearing capacity of 400 kPa when the maximum expected load was only 300 kPa. However, unknown to the designers, a much weaker clay layer existed below with an undrained shear strength of only 31 kPa compared to 54 kPa in the upper layer. This tragedy illustrates a fundamental truth: when surface soils cannot support massive structures, engineers must reach deeper into the earth with pile foundations.
Pile Load Transfer = Skin Friction + End Bearing
Q_ult = Q_s + Q_p
Where Q_ult is the ultimate pile capacity, Q_s is the shaft resistance from skin friction, and Q_p is the end bearing resistance. The Transcona failure demonstrated that understanding soil layering and load transfer mechanisms becomes critical when Q_s and Q_p cannot be accurately determined from surface investigations alone.
The Engineering Foundation: Understanding Deep Foundation Mechanics
Pile foundations represent the engineering solution when surface soils lack adequate bearing capacity or when structures require resistance to lateral forces, uplift, or dynamic loading. These slender structural elements transfer building loads through weak upper soils to deeper, more competent bearing strata, functioning through two primary mechanisms: skin friction along the pile shaft and end bearing at the pile tip.
The fundamental principle governing pile behavior involves the complex interaction between pile material, surrounding soil, and applied loads. Unlike spread footings that distribute loads over large areas at shallow depths, pile foundations concentrate loads into small cross-sectional areas while developing resistance through shaft-soil interface friction and tip bearing resistance.
Ultimate Shaft Resistance = Unit Friction × Shaft Area
Q_s = Σ(f_s × A_s)
Where f_s represents the unit skin friction and A_s is the shaft surface area. For cohesive soils, skin friction typically ranges from 0.3 to 0.7 times the undrained shear strength, while in granular soils it depends on the effective stress and soil-pile interface friction angle.
End Bearing Resistance = Bearing Capacity Factor × Tip Area × Soil Strength
Q_p = N_c × A_p × c_u (for cohesive soils)
Where N_c is the bearing capacity factor (typically 9 for deep foundations), A_p is the pile tip area, and c_u is the undrained shear strength at the pile tip level.
The behavior of pile groups adds another layer of complexity, as individual piles within a group do not act independently. Group efficiency effects reduce the total capacity below the sum of individual pile capacities due to overlapping stress zones and soil disturbance during installation.
Group Efficiency Factor = Total Group Capacity ÷ Sum of Individual Capacities
η = Q_group / (n × Q_single)
Where η is the efficiency factor (typically 0.6 to 0.9), n is the number of piles, and the reduction accounts for pile interaction effects that become more significant as pile spacing decreases.
Real-World Applications: Where Pile Foundations Support Our Infrastructure
Pile foundations form the invisible backbone of modern infrastructure, supporting everything from towering skyscrapers to massive industrial facilities where surface soils prove inadequate. High-rise construction in major cities relies extensively on pile foundations, with buildings like the Willis Tower in Chicago utilizing caisson foundations extending over 100 feet deep to reach bedrock through layers of soft clay.
Our repository's POLEFDN.xls calculation (downloaded over 2,812 times with a 4.5-star rating), developed by community contributor Alex Tomanovich, addresses these challenging design scenarios. This comprehensive tool analyzes pole foundations subjected to both axial and lateral loads, accounting for the complex soil-structure interaction that governs pile performance. The calculation handles multiple load combinations and provides detailed analysis of deflections, moments, and soil pressures that engineers need for safe design.
Industrial facilities present unique challenges where pile foundations must resist not only vertical loads but also lateral forces from equipment vibrations, thermal expansion, and seismic activity. Power plants, petrochemical facilities, and manufacturing plants often require pile foundations capable of handling millions of pounds of equipment loads while maintaining strict deflection tolerances to ensure proper machinery operation.
Bridge construction relies heavily on pile foundations, particularly for river crossings and coastal structures where scour and lateral forces from flowing water create demanding design conditions. Bridge piles must resist compression, tension, and lateral loads while providing long-term durability in potentially aggressive environments. The PILEGRP.xls calculation (downloaded over 1,103 times with a 4.4-star rating), also contributed by Alex Tomanovich, specializes in analyzing pile groups under these complex loading conditions, considering group effects and load distribution among individual piles.
Marine construction presents perhaps the most challenging applications for pile foundations, where structures must resist wave forces, tidal loading, and potential ship impact while maintaining stability in varying soil conditions below the waterline. Offshore platforms, port facilities, and waterfront structures depend on pile foundations designed to transfer enormous loads through marine sediments to competent bearing strata.
The Hidden Complexity: Why Pile Design Requires Advanced Analysis
What appears conceptually straightforward—driving or drilling deep foundations to more competent soil—becomes extraordinarily complex when engineers must account for the myriad factors affecting pile performance. Soil variability represents the primary challenge, as subsurface conditions rarely match the uniform properties assumed in simplified calculations, and small changes in soil strength or layering can dramatically affect pile capacity.
Installation effects significantly influence final pile performance, particularly for driven piles where the installation process alters soil properties around the pile shaft. Driving creates disturbance and remolding in cohesive soils, potentially reducing skin friction, while in granular soils the driving process can increase density and improve capacity. These effects vary with soil type, pile material, installation method, and time-dependent factors that challenge accurate prediction.
Load Transfer Along Pile Shaft = Function of Installation and Soil Properties
τ = f(σ'_v, φ, δ, K, OCR, installation_method)
Where τ is the shaft shear stress, σ'_v is the effective vertical stress, φ is the soil friction angle, δ is the pile-soil interface friction angle, K is the lateral earth pressure coefficient, and OCR is the overconsolidation ratio. This complex relationship demonstrates why pile capacity prediction requires sophisticated analysis beyond simple bearing capacity equations.
Lateral loading introduces additional complexity, as piles must function as both foundation elements and structural members resisting bending moments and deflections. The interaction between pile flexibility, soil restraint, and applied lateral forces creates a challenging analysis requiring consideration of soil-structure interaction and nonlinear soil behavior.
Lateral Pile Response = Soil Resistance × Deflection Compatibility
EI × d⁴y/dx⁴ + p(x) = 0
Where EI is the pile flexural rigidity, y is the lateral deflection, x is the depth coordinate, and p(x) represents the soil resistance per unit length. This differential equation governs laterally loaded pile behavior but requires sophisticated numerical methods to solve for realistic soil conditions.
While these equations look formidable on paper, our XLC add-in displays them as easily readable mathematical equations directly in Excel, transforming complex pile analysis into manageable engineering calculations. The add-in's equation verification feature allows engineers to check their pile design calculations against established theory while maintaining the familiar Excel environment that most engineers already know.
Professional Approach: Ensuring Deep Foundation Reliability
Professional pile foundation design demands comprehensive understanding of soil-structure interaction, installation effects, and long-term performance considerations that extend far beyond simple capacity calculations. The consequences of pile foundation failure can be catastrophic, as demonstrated by the Transcona Grain Elevator and countless other cases where inadequate foundation design led to structural collapse or extensive remediation costs.
Modern pile design practice emphasizes verification through multiple analytical approaches, field testing, and careful construction monitoring. Load testing provides the ultimate verification of pile performance, with static load tests offering direct measurement of pile capacity and load-settlement behavior. Dynamic testing during driving provides real-time feedback on installation effectiveness and capacity development.
The ExcelCalcs community shares a passion for making accurate pile calculations with MS Excel, providing a platform where engineers can access expert knowledge through our comments feature and learn from the extensive experience of practitioners worldwide. Our repository's worked solutions give engineers a head start in solving complex deep foundation problems, building on existing Excel skills with a much faster learning curve than specialized geotechnical software.
Our POLEFDN.xls calculation, expertly developed by Alex Tomanovich, provides not just the calculation methodology but also the documentation standards expected in professional practice. The comprehensive analysis includes deflection calculations, moment diagrams, and soil pressure distributions that engineers need for complete pile design verification.
Quality assurance in pile foundation design requires checking multiple failure modes: axial capacity, lateral capacity, structural adequacy, group effects, and long-term settlement. Each mode requires different analysis approaches and safety factors, creating a comprehensive framework that addresses all potential failure mechanisms while ensuring adequate factors of safety for the anticipated loading conditions.
Repository Showcase: Comprehensive Pile Foundation Solutions
The ExcelCalcs repository offers an extensive collection of pile foundation design tools to address various codes, standards, and specialized applications. Beyond our flagship POLEFDN.xls analysis, engineers can access specialized calculations including the PILEGRP.xls for pile group analysis (1,103 downloads, 4.4-star rating), AXIAL AND LATERAL LOAD PILES (FEM) for finite element analysis (1,037 downloads, 4.2-star rating), and Bored Piles For The Analysis of Layered Soil.xlsx (959 downloads, 4.4-star rating).
For specialized applications, our repository includes Pile Capacity Calculation (567 downloads, 4.1-star rating), Socket Pile Analysis And Design for drilled shaft applications (230 downloads, 4.5-star rating), and Single Pile Load vs settlement analysis (96 downloads, 4.8-star rating). European practitioners can utilize Driven PileCapacity Calculation (EN1997 - SS Annex).xlsx (56 downloads, 4.6-star rating), while those working with Indian codes can access Pile Design by IS & IRS Codes (147 downloads). This diversity ensures that regardless of your local code requirements, pile type, or specific design challenges, our community has developed solutions to meet your deep foundation needs.
