December 15, 1967, 5:00 PM. Rush hour traffic crawled across the Silver Bridge connecting Point Pleasant, West Virginia, to Gallipolis, Ohio. Christmas shoppers filled the two-lane span as families hurried home through the winter evening. In less than one minute, the bridge collapsed into the icy Ohio River below, killing 46 people in what became America's deadliest bridge disaster caused by pin connection failure.

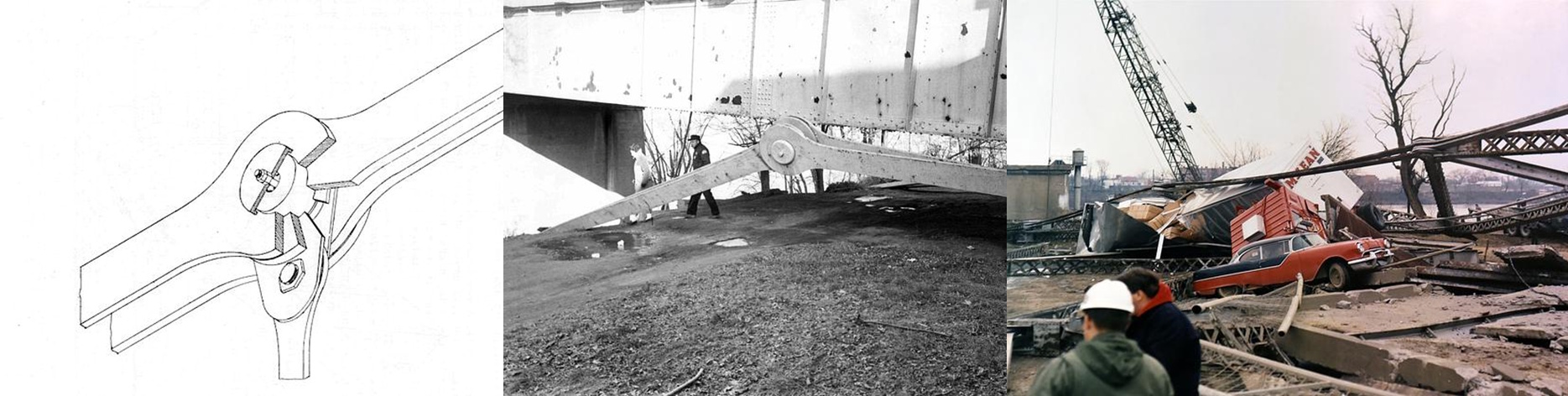

The Silver Bridge catastrophe began with a microscopic crack—just 0.1 inches deep—in eyebar 330, essentially a massive steel lug with a pin connection that carried the bridge's suspension loads. This tiny flaw, invisible to inspection methods of the era, grew over the bridge's 40-year service life through stress corrosion and corrosion fatigue until it reached critical size and triggered sudden, brittle fracture of the pin-loaded connection.
The disaster revealed fundamental weaknesses in how engineers understood pin-loaded lug connections. While the eyebar appeared robust and calculations showed adequate capacity, the failure demonstrated that stress concentrations around pin holes, combined with environmental effects and inadequate redundancy, could transform a localized connection failure into total structural collapse. The tragedy forever changed how engineers approach clevis and lug design, leading to the sophisticated analytical methods pioneered by researchers like Ralph Peterson.
P_bearing = d × t × σ_bearing
This fundamental bearing stress relationship governed Silver Bridge eyebar design, where d represents pin diameter, t is eyebar thickness, and σ_bearing denotes allowable bearing stress. But this simple formula assumed uniform stress distribution and perfect materials—assumptions that proved dangerously inadequate when stress concentrations and environmental degradation combined to create the microscopic flaw that brought down an entire bridge.
The Engineering Foundation: Understanding Pin Connection Complexity
The Engineering Foundation: Understanding Pin Connection Complexity
Clevis and lug connections represent one of the most deceptively complex areas of mechanical design, where apparent simplicity masks sophisticated stress distributions, failure mechanisms, and design considerations that have evolved through decades of research pioneered by engineers like Ralph Peterson. These connections form the backbone of aerospace, marine, and heavy lifting applications where reliability demands exceed conventional design approaches.
The fundamental challenge in clevis and lug design lies in understanding how concentrated loads transfer from pins through bearing contact into the surrounding material. Unlike simple beam theory, pin-loaded lugs experience complex three-dimensional stress states that involve bearing compression, hoop tension, radial tension, and net section tension—all occurring simultaneously within a confined geometric envelope.
Peterson's groundbreaking research in the 1950s revolutionized lug design by developing analytical methods that account for these complex stress interactions. His work recognized that lug failures rarely occur in the simple modes that elementary calculations predict, instead following intricate failure paths that depend on geometry ratios, material properties, and loading conditions.
K_t = σ_max / σ_nom = f(D/W, d/D, t/D)
This stress concentration factor relationship demonstrates how lug geometry affects local stress amplification, where D represents lug width, W is the overall width, d is pin diameter, and t denotes thickness. The stress concentration depends critically on these dimensional ratios, making lug design a sophisticated geometric optimization problem rather than a simple strength calculation.
The Peterson method introduces the concept of lug efficiency—the ratio of actual load-carrying capacity to the capacity predicted by simple bearing calculations. This efficiency factor accounts for stress concentrations, load distribution irregularities, and the complex interaction between different failure modes that determine actual lug performance.
η_lug = P_actual / P_bearing = f(K_t, K_bearing, K_bypass)
Where η_lug represents lug efficiency, and the K-factors account for stress concentration (K_t), bearing stress distribution (K_bearing), and bypass load effects (K_bypass). This relationship shows why identical-looking lugs can have dramatically different load capacities depending on their geometric proportions and loading conditions.
The method also addresses the critical issue of load eccentricity that occurs when pin loads don't align perfectly with lug centerlines. Even small eccentricities create secondary bending moments that can reduce lug capacity by 50% or more, making accurate load path analysis essential for reliable design.
M_secondary = P × e_offset × (1 + δ_flexibility)
This secondary moment relationship shows how load offset e_offset combines with connection flexibility δ_flexibility to create additional stresses that simple static calculations ignore but that dominate actual failure behavior.
Real-World Applications: Where Peterson's Method Shapes Critical Industries
Real-World Applications: Where Peterson's Method Shapes Critical Industries
The Peterson method for clevis and lug design has become indispensable across industries where connection reliability directly impacts human safety and mission success. From aerospace control surfaces to offshore lifting systems, these connections must perform flawlessly under conditions that push materials and design methods to their limits.
Aerospace applications represent perhaps the most demanding use of clevis and lug connections, where weight optimization conflicts with reliability requirements under extreme loading conditions. Aircraft control surfaces, landing gear attachments, and engine mounts all rely on pin connections that must survive millions of load cycles while maintaining precise tolerances and fail-safe characteristics.
Marine and offshore applications subject clevis and lug connections to some of the most severe environmental conditions imaginable. Salt water corrosion, dynamic wave loading, and temperature cycling create failure mechanisms that landlocked engineers rarely encounter. Crane boom connections, anchor handling systems, and diving bell attachments all depend on pin connections designed using Peterson's methodologies.
Our repository's Clevis and lug design - Peterson's calculation (downloaded over 1,451 times with a 4.1-star rating), developed by community contributors, addresses these complex design scenarios through comprehensive implementation of Peterson's analytical methods for stress concentration, bearing distribution, and efficiency factor determination.
Heavy lifting and rigging operations rely extensively on properly designed lug connections for load handling equipment that must perform safely with minimal redundancy. Container handling cranes, construction lifting equipment, and industrial material handling systems all utilize pin connections where failure consequences extend far beyond equipment damage to include significant human safety risks.
Nuclear and power generation applications demand clevis and lug connections capable of maintaining structural integrity throughout extended service lives under radiation, temperature, and pressure conditions that exceed normal engineering experience. Steam generator supports, reactor vessel attachments, and safety system connections all require the sophisticated analysis methods that Peterson pioneered.
Military and defense applications push clevis and lug design to extremes of performance and reliability. Artillery systems, missile launch mechanisms, and armored vehicle suspension components must function reliably under shock loading, vibration, and environmental extremes that civilian applications never encounter.
The API PADEYE Design calculation (1,380 downloads, 4.1-star rating) exemplifies marine industry requirements, while Aerospace_lug_analysis.xls (423 downloads, 4.6-star rating) demonstrates the sophisticated approaches required for flight-critical applications.
The Hidden Complexity: Why Simple Pin Calculations Lead to Dangerous Designs
The Hidden Complexity: Why Simple Pin Calculations Lead to Dangerous Designs
The apparent simplicity of clevis and lug connections conceals layers of engineering complexity that have trapped countless designers into dangerous oversimplifications. What appears as straightforward bearing stress quickly reveals itself as a sophisticated interaction of multiple failure modes, geometric effects, and material behaviors that simple calculations cannot capture.
Stress concentration effects around pin holes create localized stress amplifications that can reach 3.0 times nominal values, transforming seemingly adequate designs into critical failure points. These concentrations depend not only on hole quality and pin fit but also on lug proportions, material properties, and loading direction in ways that elementary analysis cannot predict.
σ_peak = K_t × σ_bearing × f(μ, clearance, surface_finish)
This peak stress relationship demonstrates how theoretical stress concentration factors K_t combine with friction coefficient μ, pin-to-hole clearance, and surface finish quality to create actual stress levels that often exceed design assumptions by significant margins.
Load distribution irregularities represent another source of complexity that challenges conventional design approaches. Real pin connections rarely achieve the uniform bearing stress distribution that textbook examples assume, instead developing concentrated loading regions that create failure initiation sites at unexpected locations.
While these equations look intimidating on paper, our XLC add-in displays them as easily readable mathematical equations directly in Excel, transforming Peterson's sophisticated analytical methods into practical design tools that engineers can confidently apply without requiring specialized software or extensive training in advanced stress analysis techniques.
Material property variations add yet another layer of complexity that simple calculations ignore. Lug materials exhibit different strengths in different loading directions, while surface treatments and manufacturing processes create property gradients that affect local failure mechanisms. Temperature effects, environmental degradation, and cyclic loading all influence material behavior in ways that static strength calculations cannot address.
σ_allowable = f(σ_ultimate, T, N_cycles, environment) × SF
This allowable stress relationship shows how ultimate strength must be modified for temperature T, fatigue life N_cycles, and environmental conditions before applying safety factors SF, creating a complex design space that defies simple rule-of-thumb approaches.
Pin flexibility introduces dynamic effects that transform static pin connections into complex structural systems. Pin deflection under load creates stress redistributions that alter bearing contact patterns, potentially causing stress concentrations to migrate to new locations and creating failure modes that rigid-pin analysis cannot predict.
Manufacturing tolerances and assembly procedures create additional variables that affect connection performance in ways that nominal design calculations cannot capture. Hole quality, pin straightness, and assembly torques all influence actual stress distributions and fatigue life in applications where these seemingly minor details determine the difference between reliable service and catastrophic failure.
Professional Approach: Implementing Peterson's Method for Reliable Design
Professional Approach: Implementing Peterson's Method for Reliable Design
The complexity of clevis and lug connections demands systematic professional approaches that extend beyond simple stress calculations to encompass failure mode analysis, manufacturing considerations, and quality assurance procedures that ensure reliable performance throughout the connection's design life under realistic service conditions.
The ExcelCalcs community shares a passion for making accurate calculations with MS Excel, providing a platform where engineers can access expert knowledge through our comments feature and benefit from collective experience with Peterson's methods across diverse industries from aerospace to marine applications.
Professional lug design begins with comprehensive failure mode identification that considers all potential mechanisms including net section tension, bearing failure, shear-out, bushing rotation, pin bending, and combined loading effects. Each mode requires independent analysis using Peterson's methods, with the governing mode determining design adequacy regardless of margins in other failure modes.
Load path analysis becomes critical given the complex stress distributions that develop in pin-loaded lugs. Engineers must understand how loads transfer from pins through bearing contact into the lug material, identifying stress flow patterns that reveal potential failure initiation sites and stress concentration locations that require detailed analysis.
Our repository's worked solutions give engineers a head start in implementing Peterson's sophisticated analytical methods while building on existing Excel skills with a much faster learning curve than specialized finite element packages that require extensive training and annual licensing costs exceeding thousands of dollars.
Quality assurance procedures for clevis and lug connections must address manufacturing tolerances, surface finish requirements, and assembly procedures that directly affect connection performance. Pin-to-hole clearances, hole quality, and bearing surface preparation all influence stress distributions and fatigue life in ways that require careful specification and verification.
Material selection considerations extend beyond simple strength properties to include fatigue resistance, environmental compatibility, and manufacturing characteristics that affect connection reliability. The interaction between pin and lug materials becomes particularly important in applications involving dissimilar metals, temperature cycling, or corrosive environments.
Testing and validation requirements for critical applications often demand full-scale testing that verifies analytical predictions and identifies potential failure modes that analysis cannot capture. Quality assurance through comments feature and peer review helps ensure that testing programs address the most critical design questions while maintaining cost-effectiveness.
Repository Showcase: Comprehensive Pin Connection Design Solutions
Repository Showcase: Comprehensive Pin Connection Design Solutions
Beyond our flagship Peterson's clevis and lug analysis, engineers can access specialized calculations including API PADEYE Design (1,380 downloads, 4.1-star rating), BTH pinned plate (1,073 downloads, 4.3-star rating), and AISC Lifting Lug for structural applications (606 downloads, 4.3-star rating).
For specialized applications, our repository includes Aerospace_lug_analysis.xls (423 downloads, 4.6-star rating), Pin and Lug - Static and Fatigue.xls for cyclic loading analysis (417 downloads, 4.8-star rating), and Lifting lug calcs.xls (496 downloads, 4.0-star rating). Marine practitioners can utilize Padeye Design for offshore applications (376 downloads, 4.1-star rating), while construction engineers can access Lifting Eyes - AISC designed for structural lifting points (352 downloads, 4.2-star rating). International applications are supported through Lifting Lug BS EN 1993-1-8 for European standards (32 downloads, 4.7-star rating). This diversity ensures that regardless of your industry requirements or specific application demands, our community has developed Peterson method implementations to meet your pin connection design needs.
Advanced analysis tools include Pin and Lug.xls for general applications (393 downloads, 4.3-star rating), Spreader Bar Lifting Device Calculations and Design for rigging equipment (420 downloads, 4.4-star rating), and S-hook design.xls for specialized hardware (255 downloads, 4.3-star rating). The comprehensive nature of our pin connection library reflects decades of collective engineering experience with Peterson's methods across aerospace, marine, and industrial applications.
Start Your Peterson Method Design Journey Today
Start Your Peterson Method Design Journey Today
The sophistication of modern clevis and lug applications demands calculation tools that incorporate Peterson's analytical advances while remaining accessible to practicing engineers. Our Clevis and lug design - Peterson's calculation represents the culmination of extensive community development, incorporating stress concentration factors, efficiency relationships, and failure mode analysis into a comprehensive design tool that handles the complexity of pin connection analysis.
We extend our appreciation to the engineering contributors who developed these essential calculation tools, transforming Peterson's theoretical advances into practical design solutions that serve engineers worldwide across aerospace, marine, and industrial applications. Their expertise has created calculation templates that continue to evolve with industry advances and incorporate lessons learned from both successful applications and documented failures.
Join the ExcelCalcs community with a $99 professional subscription—insignificant compared to MathCAD, Mathematica, or Maple—and gain access to our complete repository of pin connection design solutions. Students and educators benefit from our 50% academic discount, while free trials allow you to explore the comprehensive capabilities of our Peterson method calculation tools without commitment.
Join the ExcelCalcs community today and discover why thousands of engineers trust our templates for their most critical pin connection design challenges. Because when clevis and lug connections must transfer loads safely and reliably, you need calculations that understand the sophisticated engineering behind Peterson's revolutionary methods.
