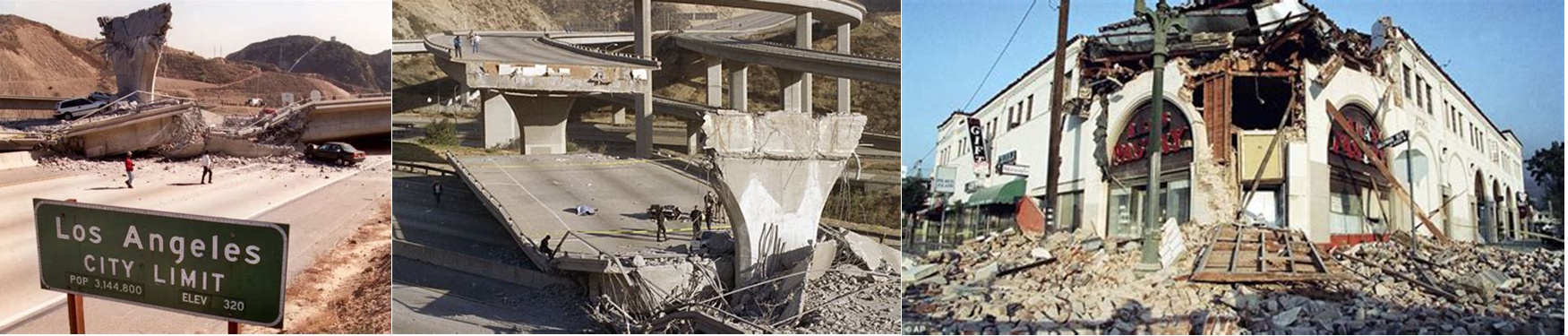

January 17, 1994, 4:30 AM. The magnitude 6.7 Northridge earthquake jolted Los Angeles awake with ground accelerations exceeding 1.8g—forces that challenged every assumption underlying seismic design codes of the era. In just 20 seconds, the earthquake caused $20 billion in damage, collapsed major freeway interchanges, and fundamentally transformed how engineers understand seismic forces and structural response.
The disaster's most shocking revelation wasn't the collapse of older structures—it was the widespread damage to "earthquake-resistant" buildings designed to meet modern seismic codes. Steel moment frame buildings suffered brittle fractures in welded connections that were supposed to provide ductile behavior. Concrete structures experienced shear failures that contemporary analysis methods had deemed impossible. The earthquake exposed fundamental gaps between code provisions and the brutal reality of strong ground motion.
Northridge became the catalyst for the most comprehensive revision of seismic design methodology in American history. The disaster demonstrated that traditional approaches to earthquake engineering—based on equivalent static forces and simplified dynamic analysis—proved inadequate when subjected to the complex ground motions that define actual earthquake loading. The building code's evolution from pre-Northridge simplicity to modern performance-based design reflects lessons written in structural debris and human tragedy.
V = Cs × W
This fundamental seismic base shear relationship—where seismic coefficient Cs multiplied by building weight W determined earthquake forces—had governed seismic design for decades. But Northridge's destruction revealed that actual earthquake forces involved complex dynamic amplification, soil-structure interaction, and failure mechanisms that this simple equation could not capture.
The Engineering Foundation: Understanding Modern Seismic Design Philosophy
The Engineering Foundation: Understanding Modern Seismic Design Philosophy
The International Building Code's seismic design provisions represent a sophisticated response to decades of earthquake damage investigations, laboratory testing, and theoretical advances that have revolutionized understanding of how structures respond to ground motion. Modern seismic design philosophy extends far beyond simple force calculation to encompass performance objectives, failure mode control, and the complex dynamic phenomena that govern structural behavior during earthquakes.
The fundamental challenge in seismic design lies in recognizing that earthquakes create time-varying, three-dimensional ground motions that excite complex structural responses involving multiple vibration modes, nonlinear material behavior, and potentially large deformations. Unlike wind or gravity loads that can be reasonably approximated as static forces, earthquake loading demands understanding of structural dynamics and inelastic response that challenges conventional linear analysis methods.
Modern IBC seismic provisions address these complexities through a multi-tiered approach that begins with simplified equivalent static analysis for regular structures but progresses to sophisticated dynamic analysis for complex or critical buildings. The code recognizes that different structural systems exhibit fundamentally different seismic response characteristics, requiring system-specific design factors and detailing requirements.
Cs = SDS / (R/Ie)
This enhanced seismic coefficient relationship demonstrates how IBC provisions incorporate design spectral acceleration SDS reflecting site-specific ground motion, response modification factor R accounting for system ductility and overstrength, and importance factor Ie recognizing different performance objectives for different building occupancies.
The response modification factor concept revolutionized seismic design by explicitly recognizing that structures can survive earthquakes through inelastic behavior that dissipates energy through controlled damage. This approach requires careful attention to member proportioning, connection design, and detailing that ensures ductile failure modes while preventing brittle collapse mechanisms.
R = Rμ × Rξ × RΩ
Where R represents the total response modification combining ductility reduction Rμ, damping effects Rξ, and overstrength factor RΩ that account for the various mechanisms through which real structures resist seismic forces beyond simple elastic response.
Site classification provisions recognize that local soil conditions profoundly affect ground motion characteristics and structural response. Soft soils can amplify earthquake motions by factors exceeding 2.0 while altering frequency content in ways that affect different structures differently. The IBC's site-specific design spectra provide a systematic approach to incorporating these effects into design practice.
SMS = Fa × SS
SM1 = Fv × S1
These site-modified spectral accelerations demonstrate how mapped ground motion parameters SS and S1 are adjusted through site factors Fa and Fv that account for local soil conditions, creating design ground motions that reflect both regional seismicity and site-specific amplification effects.
Real-World Applications: Where IBC Seismic Design Protects Communities
Real-World Applications: Where IBC Seismic Design Protects Communities
IBC seismic design provisions have become essential for protecting communities in earthquake-prone regions while enabling economic development through risk-informed design approaches that balance safety objectives against construction costs. From residential buildings to critical facilities, these provisions provide the analytical framework necessary for designing structures that can survive major earthquakes while maintaining post-earthquake functionality when required.
High-rise building design in seismic regions demands sophisticated analysis that accounts for higher mode effects, torsional response, and the complex interaction between lateral force resisting systems and gravity framing. Modern tall buildings often utilize advanced structural systems like buckling-restrained braced frames or base isolation that require specialized analysis beyond simplified code procedures.
Hospital and emergency facility design requires enhanced seismic performance that maintains functionality following major earthquakes. The IBC's Risk Category IV provisions impose reduced response modification factors and increased design forces that reflect the critical importance of these facilities for post-earthquake response and recovery operations.
Our repository's IBC 2006 Seismic Calc.xls calculation (downloaded over 1,529 times with a 4.0-star rating), developed by community contributors, addresses these complex design scenarios through comprehensive implementation of IBC seismic provisions including equivalent static analysis, dynamic analysis requirements, and system-specific design factors.
School construction presents unique seismic challenges where life safety requirements combine with post-earthquake functionality needs to ensure educational continuity following major seismic events. Modern school design often incorporates enhanced seismic detailing and redundancy that exceeds minimum code requirements while maintaining architectural flexibility for educational programming.
Industrial facility design must address both structural survival and equipment protection, as process interruption costs can exceed structural repair costs by orders of magnitude. Chemical plants, refineries, and manufacturing facilities require seismic design that considers equipment anchorage, piping flexibility, and the potential consequences of seismically induced releases or equipment failures.
Residential construction utilizes simplified IBC provisions that enable efficient design while ensuring life safety protection for the majority of the building stock. The code's prescriptive provisions for wood frame construction provide seismic resistance through standardized detailing and connection requirements that can be applied without complex analysis.
Bridge and infrastructure design extends IBC principles to transportation systems that must maintain functionality for emergency response following major earthquakes. Seismic isolation, energy dissipation systems, and redundant load paths all contribute to enhanced seismic performance that supports post-earthquake recovery operations.
The IBC2009E.xls calculation (555 downloads, 4.9-star rating) demonstrates more recent code applications, while Eathquake Lateral Forces ASCE7-05 / IBC 2006 (316 downloads, 4.9-star rating) addresses combined wind and seismic considerations.
The Hidden Complexity: Why Earthquakes Defy Simple Analysis
The Hidden Complexity: Why Earthquakes Defy Simple Analysis
The apparent simplicity of seismic base shear calculations conceals extraordinary complexity that emerges from the interaction between ground motion characteristics, structural dynamics, and nonlinear material behavior. What appears as straightforward force application actually involves sophisticated time-varying phenomena that challenge every assumption underlying conventional structural analysis.
Ground motion variability creates loading conditions that differ dramatically from the smooth design spectra used in code analysis. Real earthquake records contain high-frequency spikes, velocity pulses, and duration effects that can cause structural responses far exceeding those predicted by equivalent static analysis or even simplified dynamic procedures.
a(t) = Σ[ai × sin(ωi × t + φi)] × envelope(t)
This ground motion relationship demonstrates how earthquake acceleration consists of multiple frequency components that combine with time-varying amplitude envelopes to create complex loading patterns that excite different structural response modes throughout the duration of strong shaking.
Soil-structure interaction introduces phenomena that modify both ground motion input and structural response characteristics. Foundation flexibility can reduce structural accelerations but may increase displacements, while radiation damping provides energy dissipation that static analysis cannot capture. These effects become particularly important for stiff structures on soft soils.
While these equations look intimidating on paper, our XLC add-in displays them as easily readable mathematical equations directly in Excel, transforming the complex requirements of IBC seismic analysis into practical design tools that engineers can confidently apply without requiring specialized earthquake engineering software or advanced dynamics training.
Nonlinear structural behavior creates response characteristics that violate fundamental assumptions underlying linear analysis methods. As structures undergo inelastic deformations during strong earthquakes, their dynamic properties change continuously, altering response patterns in ways that linear analysis cannot predict.
F(δ) = K(δ) × δ + C(δ̇) × δ̇ + α × δ^n
This nonlinear force-displacement relationship shows how structural stiffness K and damping C vary with deformation level δ and velocity δ̇, while higher-order terms α × δ^n capture geometric nonlinearity effects that become important at large displacement levels.
P-Delta effects amplify seismic demands when gravity loads combine with lateral displacements to create secondary moments that can trigger progressive collapse. Modern codes require explicit evaluation of these effects for buildings that exceed displacement limits, but the interaction between seismic response and gravity load effects creates complex stability considerations.
Torsional response occurs when centers of mass and stiffness don't coincide, creating coupled lateral-torsional motions that can concentrate damage in elements not designed for combined loading. Irregular buildings are particularly susceptible to torsional amplification that simple analysis methods cannot adequately capture.
Vertical acceleration effects, often neglected in simplified analysis, can significantly affect structural response by modifying effective gravity loads and exciting vertical vibration modes. Near-fault ground motions may contain strong vertical components that challenge design assumptions based on predominantly horizontal loading.
Professional Approach: Implementing IBC Seismic Design for Community Protection
Professional Approach: Implementing IBC Seismic Design for Community Protection
The life safety implications of seismic design demand rigorous professional approaches that extend beyond code compliance to encompass performance verification, peer review, and quality assurance procedures that ensure communities receive the earthquake protection that modern building codes promise.
The ExcelCalcs community shares a passion for making accurate calculations with MS Excel, providing a platform where engineers can access expert knowledge through our comments feature and benefit from collective experience with IBC seismic applications across diverse building types from residential construction to critical facilities requiring enhanced performance.
Professional seismic design begins with accurate site characterization that determines design ground motions reflecting both regional seismicity and local soil conditions. Site class determination requires geotechnical investigation that extends beyond routine foundation design to characterize soil properties affecting seismic wave propagation and amplification.
Structural system selection becomes critical for achieving appropriate seismic performance while maintaining architectural functionality and construction economy. Different lateral force resisting systems exhibit fundamentally different response characteristics, requiring early coordination between architectural and structural design to optimize building performance.
Our repository's worked solutions give engineers a head start in implementing IBC's sophisticated seismic provisions while building on existing Excel skills with a much faster learning curve than specialized earthquake engineering software that requires extensive training and annual licensing costs often exceeding thousands of dollars.
Design verification procedures must demonstrate that analysis methods and modeling assumptions remain valid for the specific application under consideration. Simplified analysis methods have limited applicability that must be verified before their use, while dynamic analysis requires validation of modeling assumptions and interpretation of results by qualified practitioners.
Quality assurance requirements increase for seismic design given the consequences of inadequate earthquake resistance and the complexity of modern seismic analysis methods. Peer review becomes essential for critical facilities and complex structures where standard analysis procedures may not adequately capture actual behavior.
Construction administration takes on enhanced importance for seismic design since connection details, material properties, and construction quality directly affect earthquake performance. Special inspection requirements reflect the critical nature of seismic force resisting system components and their influence on overall building safety.
Documentation standards require clear presentation of seismic analysis assumptions, design criteria, and performance objectives that enable proper construction and long-term maintenance. Quality assurance through comments feature and peer review helps ensure that seismic design intent is properly communicated and maintained throughout project delivery and building lifecycle.
Repository Showcase: Comprehensive IBC Seismic Analysis Solutions
Repository Showcase: Comprehensive IBC Seismic Analysis Solutions
Beyond our flagship IBC 2006 Seismic Calc analysis, engineers can access calculations spanning multiple code editions including IBC2009E.xls (555 downloads, 4.9-star rating), IBC2003E.xls (553 downloads, 4.8-star rating), and IBC2006E.xls for comprehensive analysis (428 downloads, 4.2-star rating).
For specialized applications, our repository includes IBC2000E.xls (368 downloads, 5.0-star rating), Eathquake Lateral Forces ASCE7-05 / IBC 2006 for combined loading analysis (316 downloads, 4.9-star rating), and Pole Foundation IBC 2003 for utility structures (564 downloads, 4.0-star rating). Liquid storage applications can utilize ACI 350.3-06 Seismic Loads for Liquid-Containing Rectangular RC Tank (220 downloads, 4.1-star rating), while advanced analysis includes Seismic response of liquid storage tank (164 downloads, 4.3-star rating) and Seismic Design of Liquid-containing Concrete Structures (116 downloads, 4.4-star rating). Structural analysis tools include EARTHQUAKE PORTAL METHOD 5-BAY FRAME for frame analysis (106 downloads, 4.7-star rating). International practitioners can access UBC97 Earthquake Lateral Forces for legacy applications (91 downloads, 4.0-star rating). This diversity ensures that regardless of your IBC edition requirements or specific seismic application, our community has developed comprehensive solutions to meet your earthquake engineering needs.
Advanced seismic analysis tools include Seismic Loads for Liquid Containing Rectangular RC Tank According ACI 350 306 Appendix B Method Based on 1997 Uniform Building Code for tank design (107 downloads, 4.7-star rating), Probablistic Seismic Hazard Analysis for advanced assessment (84 downloads, 4.0-star rating), and Seismic Wave Propagation in Ductile Iron Pipe for infrastructure applications (46 downloads, 4.0-star rating). The comprehensive nature of our IBC seismic library reflects decades of collective engineering experience with earthquake design across diverse building types and seismic regions.
Start Your IBC Seismic Design Journey Today
Start Your IBC Seismic Design Journey Today
The complexity of modern seismic design demands calculation tools that implement IBC's sophisticated methodology while remaining accessible to practicing engineers. Our IBC 2006 Seismic Calc.xls calculation represents the culmination of extensive community development, incorporating equivalent static analysis, dynamic analysis requirements, and system-specific design factors into a comprehensive analysis tool that handles the complexity of modern earthquake engineering.
We extend our appreciation to the engineering contributors who developed these essential calculation tools, transforming the sophisticated requirements of IBC seismic provisions into practical design solutions that serve engineers worldwide. Their expertise has created calculation templates that continue to evolve with code updates and incorporate lessons learned from both successful seismic performance and documented earthquake damage investigations.
Join the ExcelCalcs community with a $99 professional subscription—insignificant compared to MathCAD, Mathematica, or Maple—and gain access to our complete repository of IBC seismic analysis solutions. Students and educators benefit from our 50% academic discount, while free trials allow you to explore the comprehensive capabilities of our earthquake engineering calculation tools without commitment.
Join the ExcelCalcs community today and discover why thousands of engineers trust our templates for their most critical seismic design challenges. Because when the earth shakes, you need calculations that understand the sophisticated engineering principles behind modern earthquake-resistant design.
