When Perfect Theory Meets Imperfect Reality: The Northridge Connection Crisis

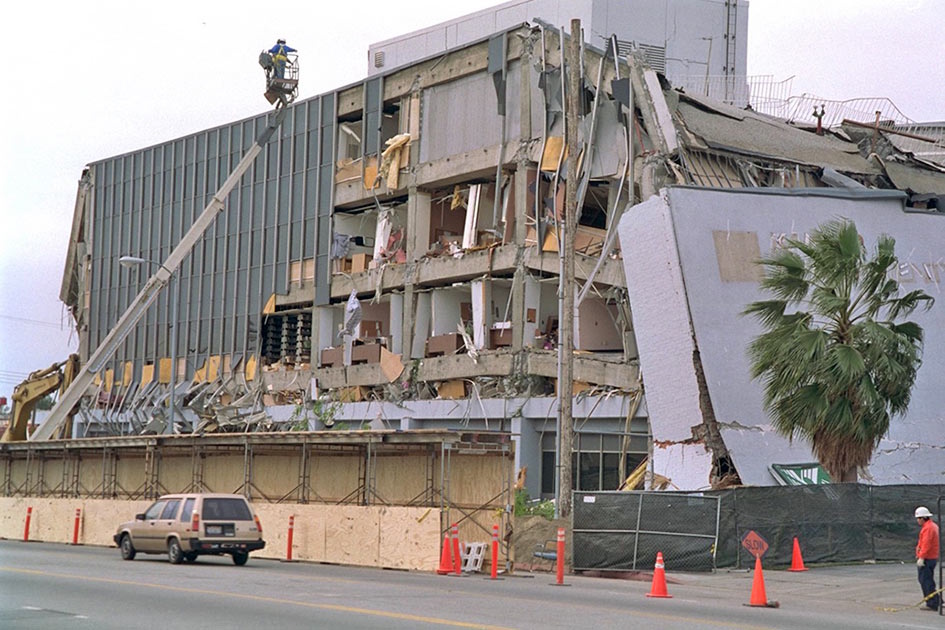

At 4:30 AM on January 17, 1994, the Northridge earthquake struck Los Angeles with devastating force, recording the highest ground acceleration ever measured in an urban area - 1.82g. While the 6.7 magnitude quake lasted only 10-20 seconds, it exposed a catastrophic flaw that had been hidden in thousands of steel buildings throughout California. Steel moment-resisting frame buildings, considered the gold standard for seismic design, suffered widespread brittle fractures in their welded beam-to-column connections.
The crisis was unprecedented in scope and economic impact. Over 200 steel buildings suffered connection damage ranging from minor cracking to completely severed columns. These structures, designed to resist earthquake forces through ductile yielding of their steel frames, instead failed catastrophically at their connections - the very joints engineers had assumed were stronger than the members they connected. The disaster led to emergency building code revisions and triggered a $50 billion damage bill that included billions in retrofit costs.
The fundamental engineering principle that failed was the basic assumption of connection strength:
Strength_connection > Strength_member
Where connection strength was assumed to exceed the strength of the connected beams and columns. The Northridge earthquake revealed that pre-1994 welded moment connections had actual capacities far below their calculated values, leading to brittle fracture rather than the intended ductile yielding behavior. This failure fundamentally changed how structural engineers approach connection design worldwide.
The Engineering Foundation: Understanding Connection Mechanics
Steel connections represent the critical interface where structural theory meets construction reality, requiring careful consideration of both analytical design methods and practical fabrication constraints. Unlike individual structural members that can be analyzed through established beam and column theory, connections involve complex three-dimensional stress states, material property variations, and construction tolerances that resist simple calculation.
The fundamental principle of connection design requires that connections develop the full capacity of the connected members while providing adequate ductility for expected deformations. For moment connections, this means transferring both shear forces and bending moments between beam and column while allowing for plastic hinge formation in the connected members rather than brittle failure at the joint.
The basic force transfer mechanism in welded moment connections involves several critical components working in combination:
M_connection = M_flange_tension + M_flange_compression
F_flange = M_beam / (d_beam - t_flange)
τ_weld = F_flange / (throat_area × efficiency_factor)
Where M_connection is the connection moment capacity, M_flange represents the force couple created by tension and compression in the beam flanges, F_flange is the flange force, d_beam is beam depth, t_flange is flange thickness, τ_weld is weld stress, and efficiency_factor accounts for stress concentrations and weld quality.
The complexity of connection behavior stems from the interaction between multiple failure modes that must be considered simultaneously. Weld metal failure, base metal failure, block shear, and local buckling can all control connection capacity depending on geometry, material properties, and loading conditions. The governing failure mode may not be obvious from simple inspection, requiring detailed analysis of each potential mechanism.
Connection stiffness represents another critical design consideration, particularly for moment-resisting frames where joint flexibility affects overall structural behavior. The rotational stiffness of beam-to-column connections influences member forces, deflections, and stability throughout the structural system:
K_connection = M_applied / θ_rotation
Where K_connection is the rotational stiffness, M_applied is the applied moment, and θ_rotation is the resulting joint rotation.
The physical meaning behind connection design extends beyond simple strength calculations to encompass constructability, quality control, and long-term performance. Connections must be designed to accommodate normal construction tolerances while maintaining their design capacity under service and ultimate loading conditions.
Real-World Applications: Where Connections Define Structural Performance
Steel connections find application across virtually every structural system, from simple bolted joints in light construction to complex welded assemblies in major buildings and bridges. The selection and design of appropriate connection types directly impacts structural efficiency, construction cost, and long-term performance.
High-rise building construction represents one of the most demanding applications for steel connections, where moment-resisting connections must transfer enormous forces while providing the ductility necessary for seismic resistance. The Northridge earthquake demonstrated that even minor deficiencies in connection design can lead to widespread structural damage when multiplied across hundreds of connections in a single building. Our repository's BOLTGRP.xls calculation (downloaded over 1,320 times with a 4.6-star rating), developed by community contributors, provides comprehensive analysis tools for evaluating bolt group behavior under complex loading conditions.
Industrial construction frequently involves heavy moment connections supporting equipment loads, crane systems, and process structures. These applications often require field-welded connections where quality control becomes particularly challenging. The consequences of connection failure in industrial settings can extend beyond structural damage to include process interruption, environmental releases, and safety hazards. Our repository's gowelding.com Weld Calculations (downloaded over 1,567 times with a 4.5-star rating) offers detailed weld analysis capabilities for complex loading scenarios.
Bridge construction demands connections capable of resisting dynamic loading from traffic, wind, and seismic forces while accommodating thermal movements and long-term creep effects. Fatigue resistance becomes a primary design consideration, requiring attention to detail geometry, stress concentrations, and crack propagation characteristics. Field splices in bridge construction often involve moment connections that must develop the full capacity of large built-up girders under challenging construction conditions.
Base plate connections represent a specialized application where steel structure interfaces with concrete foundations. These connections must transfer column forces to concrete through bearing, develop anchor bolt forces in tension and shear, and accommodate construction tolerances between steel and concrete elements. Our repository's BASEPLT9.xls calculation (downloaded over 1,963 times with a 4.3-star rating) provides comprehensive base plate analysis following current code provisions.
The Hidden Complexity: Why Simple Calculations Fail
The apparent simplicity of connection design - based on basic stress calculations and standard details - conceals profound complexity that has led to numerous failures throughout engineering history. The primary complicating factors involve stress concentrations, residual stresses, material property variations, and construction quality issues that resist theoretical prediction.
Stress concentrations at connection details create localized stress levels far exceeding those predicted by simple force-divided-by-area calculations. Weld access holes, backing bars, and geometric discontinuities introduce stress concentration factors that can increase local stresses by 300% or more. These concentrations become particularly problematic under dynamic loading where high-cycle fatigue or impact effects amplify their influence.
Welding introduces additional complexity through residual stress patterns, heat-affected zone properties, and potential defects that vary with welding procedures, materials, and quality control. Residual stresses from welding can reach yield level magnitude, creating pre-existing stress states that interact with applied loads in complex ways. The heat-affected zone adjacent to welds exhibits altered material properties that can be either stronger or weaker than the base material depending on steel chemistry and thermal history.
The mathematical complexity becomes apparent when considering the full range of variables affecting connection performance:
σ_local = K_stress × (σ_applied + σ_residual) × quality_factor
N_fatigue = C / (Δσ_range × K_concentration)^m
P_failure = f(material_properties, geometry, defects, loading_rate, temperature)
Where K_stress is the stress concentration factor, σ_residual represents residual stresses, quality_factor accounts for construction variations, N_fatigue is fatigue life, C and m are material constants, Δσ_range is stress range, and K_concentration is the fatigue stress concentration factor.
While these equations look intimidating on paper, our XLC add-in displays them as easily readable mathematical equations directly in Excel, enabling engineers to perform comprehensive connection analyses while maintaining the documentation and verification capabilities essential for professional practice.
Construction quality variations introduce another layer of uncertainty that can dramatically affect connection performance. Bolt installation procedures, weld quality, fit-up tolerances, and material substitutions can all impact actual connection capacity. The gap between design assumptions and field conditions often determines whether connections perform as intended or fail prematurely under service loads.
Professional Approach: Ensuring Connection Reliability
Professional connection design requires a systematic approach that addresses strength, stiffness, ductility, and constructability while accounting for the uncertainties inherent in complex structural joints. The ExcelCalcs community shares a passion for making accurate calculations with MS Excel, providing a platform where engineers can access expert knowledge through our comments feature to navigate the intricate design procedures required for reliable connection performance.
Modern connection design practice emphasizes the use of verified calculation procedures, standardized details, and rigorous quality control to minimize the risk of unexpected failures. Current codes such as AISC 360 provide comprehensive design provisions based on extensive research and full-scale testing programs. These provisions address multiple failure modes, incorporate appropriate safety factors, and include specific requirements for materials, fabrication, and inspection.
Quality assurance protocols for connection design begin with proper analysis and continue through fabrication and installation inspection. Connection analysis requires consideration of all applicable limit states including yielding, fracture, buckling, fatigue, and serviceability. Force flow analysis helps identify load paths and potential failure mechanisms that might not be obvious from simple inspection. Our repository's worked solutions give engineers a head start in establishing verified analysis procedures that ensure comprehensive evaluation of connection performance.
Professional documentation standards require clear presentation of design assumptions, applied loads, material specifications, and acceptance criteria. Connection details must be sufficiently detailed to communicate design intent to fabricators and inspectors while allowing for normal construction tolerances. Welding symbols, bolt specifications, and surface preparation requirements must be clearly indicated to ensure proper execution of design intent.
The importance of peer review through the ExcelCalcs comments feature becomes particularly valuable for complex connections where small details can significantly impact performance. Building on existing Excel skills with a much faster learning curve than specialized software, engineers can develop robust design procedures while maintaining transparency in calculation methods and assumptions.
Connection testing and research continue to refine understanding of joint behavior under various loading conditions. Full-scale testing programs following the Northridge earthquake led to significant improvements in moment connection design and construction practices. Ongoing research addresses emerging issues such as mixed connections, alternative materials, and performance-based design approaches.
Repository Showcase: Comprehensive Connection Solutions
Beyond our flagship BOLTGRP.xls analysis, engineers can access specialized calculations including gowelding.com Weld Calculations (1,567 downloads, 4.5-star rating), BASEPLT9.xls (1,963 downloads, 4.3-star rating), and Appendix D - Anchor Bolt Anchorage ACI 318 for concrete anchorage design (1,427 downloads, 4.5-star rating).
For specialized applications, our repository includes SimpleBoltCalc.xls (1,302 downloads, 3.9-star rating), Bolt spacing and edge distances.xls (1,200 downloads, 3.9-star rating), and BTH pinned plate (1,073 downloads, 4.3-star rating). Welding engineers can utilize WELDGRP.xls (803 downloads, 4.6-star rating), Detailed Bolted Joint Calculations (790 downloads, 4.5-star rating), and Ultimate shear capacity of bolt group.xls (719 downloads, 5.0-star rating).
The repository also features advanced connection analysis tools including STEEL_CONNECTIONS.xlsx (904 downloads, 4.5-star rating), Analysis & Design of Weld Groups (754 downloads, 4.3-star rating), and Plate Stress to Fillet Weld Stress (1,010 downloads, 3.3-star rating) for comprehensive connection verification.
