When Foundations Betray: The Silent Crisis Below

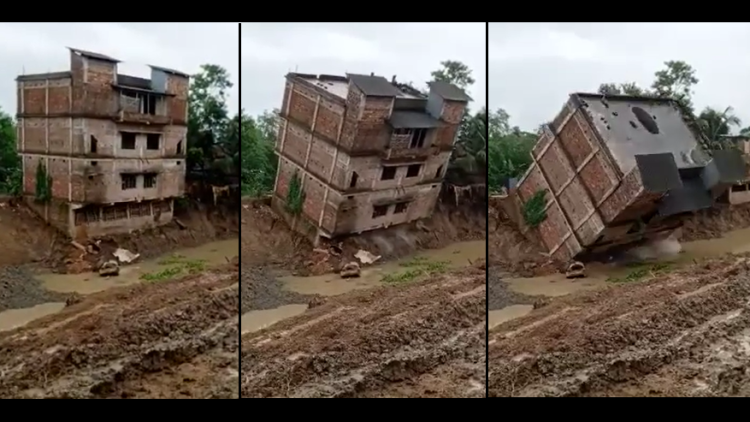

On June 13, 2020, a three-story building in West Bengal, India, suddenly collapsed into a nearby canal, its foundation completely unable to support the structure above. The dramatic failure was captured on camera, showing the entire building toppling sideways in a matter of seconds. Local businessman Nemai Samanta had been constructing the building for commercial purposes when foundation cracks appeared just two days before the collapse—warning signs that proved the foundation's stability had already been compromised.
The investigation revealed multiple contributing factors: the building had been constructed too close to the canal in violation of local building regulations, recent excavation work in the nearby canal had removed ground material that supported the foundation, and heavy rainfall the day before had saturated the already-weakened soil. Most critically, the building's foundation had been exposed prior to the failure, indicating that the soil bearing capacity had been exceeded. The engineering principle that failed was deceptively simple: when the contact pressure between foundation and soil exceeds the soil's bearing capacity, failure is inevitable.
This scenario plays out more frequently than most engineers realize. The fundamental equation governing spread footing design is:
Contact Pressure = Applied Load ÷ Footing Area
q = P / A
Where q is the contact pressure, P is the total applied load, and A is the footing area. When q exceeds the allowable soil bearing capacity q_allowable, the foundation system enters a state of progressive failure.
The Engineering Foundation: Understanding Soil-Structure Interaction
Spread footings represent one of the most fundamental concepts in structural engineering: the controlled transfer of building loads into the earth. These rectangular concrete pads serve as the critical interface between a structure's columns and the supporting soil, transforming concentrated loads into distributed pressures that the ground can safely carry.
The physics behind spread footing behavior involves complex soil mechanics, but the core principle remains elegantly simple. When a column applies a downward force to a footing, that force must be spread over a sufficient area to keep soil stresses within acceptable limits. This relationship is governed by the bearing capacity equation:
Ultimate Bearing Capacity = Cohesion Term + Surcharge Term + Width Term
q_ult = c×Nc + γ×D×Nq + (1/2)×γ×B×Nγ
Where c represents soil cohesion, γ is the soil unit weight, D is the footing depth, B is the footing width, and Nc, Nq, and Nγ are bearing capacity factors that depend on the soil's internal friction angle.
The structural design of the footing itself follows beam theory principles. The footing must resist the upward soil pressure while transferring the column load, creating a bending moment that peaks at the column face:
Maximum Bending Moment = (Soil Pressure × Cantilever Length²) ÷ 2
M_max = (q × L²) / 2
Where L is the cantilever length from the column face to the footing edge. This moment determines the required footing thickness and reinforcement, ensuring the concrete can handle the tensile stresses without cracking or failure.
Think of a spread footing as a concrete snowshoe for buildings. Just as snowshoes distribute a person's weight over a larger area to prevent sinking into snow, spread footings distribute building loads over a larger soil area to prevent excessive settlement or bearing failure.
Real-World Applications: Where Spread Footings Support Our World
Spread footings form the hidden foundation of countless structures we encounter daily. Every strip mall, office building, and residential home likely rests on these concrete pads, quietly transferring millions of pounds of load into the earth beneath our feet.
Industrial facilities represent perhaps the most challenging applications for spread footing design. Manufacturing plants house heavy machinery that generates both static loads and dynamic forces. Our repository's RECTANGULAR SPREAD FOOTING ANALYSIS calculation (downloaded over 2,185 times with a 4.4-star rating), contributed by Alex Tomanovich, addresses these complex loading scenarios, accounting for both the steady loads from equipment weight and the varying forces from operational vibrations.
In commercial construction, spread footings must handle not just the building's dead load but also the full range of live loads from occupancy, furniture, and equipment. A typical office building column might impose 200-500 kips of load on its footing, requiring careful analysis to ensure the rectangular pad can distribute this force safely into the underlying soil.
Bridge abutments present another critical application where spread footing design becomes paramount. These structures must resist not only the vertical loads from the bridge deck and traffic but also the horizontal forces from thermal expansion, braking loads, and earth pressure. The footing design must account for the complex interaction between vertical bearing capacity and horizontal sliding resistance.
Residential applications, while involving smaller loads, still require the same fundamental engineering principles. A typical house column might impose 50-100 kips on its footing, but the consequences of failure remain severe: cracked walls, stuck doors, and potential structural instability that can render a home uninhabitable.
The Hidden Complexity: Why Simple Calculations Become Engineering Challenges
What appears straightforward on paper—calculating the required area for a rectangular footing—quickly becomes complex when real-world factors enter the equation. The challenges begin with soil variability, as geotechnical conditions rarely match the uniform properties assumed in textbook calculations.
Soil bearing capacity varies dramatically with moisture content, loading rate, and seasonal conditions. A clay soil that provides adequate bearing capacity during dry conditions might lose half its strength during wet seasons, leading to unexpected settlement or bearing failure. This temporal variability requires engineers to consider not just current conditions but also the worst-case scenarios the foundation might encounter over its design life.
The interaction between footing geometry and soil stress distribution adds another layer of complexity. The simplified assumption that soil pressure remains uniform across the footing area rarely holds true in practice. Actual stress distributions depend on soil stiffness, footing rigidity, and the complex mechanics of soil-structure interaction:
Actual Soil Stress = Average Stress × Complex Function of Material Properties
σ(x,y) = σ_avg × f(x, y, E_soil, E_concrete, ν)
Where σ(x,y) represents the actual soil stress at any point, σ_avg is the average stress, and f is a complex function involving soil and concrete elastic properties plus Poisson's ratio ν.
Combined loading scenarios present perhaps the greatest challenge in spread footing design. When foundations must resist both vertical loads and horizontal forces—from wind, seismic activity, or lateral earth pressure—the analysis becomes significantly more complex. The footing must be sized not just for bearing capacity but also for overturning stability:
Safety Factor Against Overturning = Resisting Moments ÷ Overturning Moments
SF_overturning = ΣM_resisting / ΣM_overturning ≥ 2.0
While these equations look intimidating on paper, our XLC add-in displays them as easily readable mathematical equations directly in Excel, transforming complex calculations into manageable engineering analysis. The add-in's formula verification feature allows engineers to double-check their work against textbook equations, ensuring accuracy while maintaining the familiar Excel environment.
The Professional Approach: Ensuring Foundation Reliability
Professional spread footing design demands more than just meeting code requirements—it requires a systematic approach to quality assurance and documentation that protects both the engineer and the client. The consequences of foundation failure extend far beyond the immediate structural damage, often involving legal liability, professional reputation, and public safety.
Modern engineering practice emphasizes verified calculations and peer review as essential components of foundation design. The ExcelCalcs community shares a passion for making accurate calculations with MS Excel, providing a platform where engineers can access expert knowledge through our comments feature. This collaborative approach helps identify potential issues before they become costly problems in the field.
Our repository's worked solutions give engineers a head start in solving complex foundation problems, building on existing Excel skills with a much faster learning curve than specialized mathematics software. The RECTANGULAR SPREAD FOOTING ANALYSIS template, expertly developed by Alex Tomanovich, provides not just the calculation methodology but also the documentation standards expected in professional practice.
Quality assurance in foundation design requires checking calculations against multiple failure modes: bearing capacity, settlement, sliding, and overturning. Each mode requires different analysis approaches and safety factors, creating a comprehensive framework that addresses all potential failure mechanisms. The documentation must clearly show how each check was performed and how the final design satisfies all requirements.
Professional liability considerations make accurate calculations and proper documentation even more critical. Courts and insurance companies expect engineers to demonstrate that their designs followed established engineering principles and code requirements. The ability to trace every calculation step and verify equations against textbook references provides essential protection in liability situations.
