When the Earth Moves First: The Mexico City Earthquake Lesson

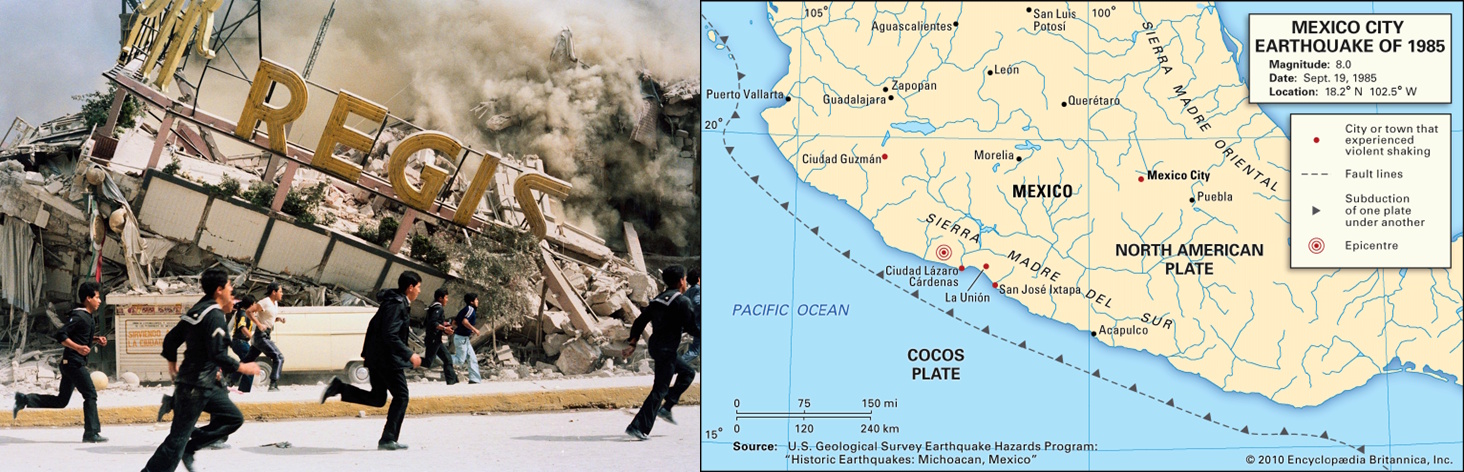

On September 19, 1985, an 8.0 magnitude earthquake struck 250 miles from Mexico City, yet the capital suffered catastrophic damage while closer cities remained largely intact. Over 400 buildings collapsed and 10,000 people died, not from the earthquake's direct force, but from a deadly dance between structures and soil that engineers call soil-structure interaction. The soft lake bed beneath Mexico City amplified seismic waves, creating a resonance effect that turned moderate ground motion into building-destroying forces.
The tragedy revealed a fundamental engineering truth: buildings don't exist in isolation—they're part of a complex system where structure and soil influence each other. When seismic waves travel through the ground, they don't simply shake buildings; they create a feedback loop where the building's response changes the soil's behavior, which in turn affects the building's motion. This interaction can amplify forces far beyond what either the soil or structure would experience alone.
The basic relationship governing this interaction starts with the fundamental equation of dynamic equilibrium:
m_total × acceleration + c_system × velocity + k_system × displacement = F_ground
Where the system mass, damping, and stiffness include contributions from both the structure and the surrounding soil, creating a coupled dynamic response that can be dramatically different from assuming a rigid foundation.
The Engineering Foundation: Understanding Dynamic Soil-Structure Systems
Soil-structure interaction represents one of engineering's most complex phenomena because it challenges our traditional approach of analyzing buildings and foundations separately. Instead of treating the ground as an immovable platform, SSI recognizes that soil deforms, has mass, and exhibits dynamic properties that fundamentally alter how structures respond to loading.
The interaction begins with the concept of foundation flexibility. Traditional rigid foundation analysis assumes the foundation doesn't move, but real foundations on real soil experience both translational and rotational movements. When a building experiences lateral forces from wind or earthquakes, the foundation pushes against the soil, which pushes back—but not with infinite stiffness.
The soil's response can be characterized by dynamic impedance functions that relate the foundation forces to its motion:
F_horizontal = K_horizontal × displacement + C_horizontal × velocity
M_moment = K_rotation × rotation + C_rotation × rotational_velocity
Where K represents soil stiffness, C represents soil damping, and the terms indicate horizontal and rotational components. These impedance functions are frequency-dependent, meaning the soil responds differently to different vibration frequencies—a critical factor in seismic design.
The structure's natural frequency also changes due to soil flexibility. Instead of the fixed-base frequency we typically calculate, the actual system frequency becomes:
f_system = f_fixed × √[(K_structure + K_soil) / K_structure]
This frequency shift can be dramatic. Soft soils significantly reduce the system's natural frequency, potentially bringing it closer to the dominant frequency of earthquake ground motion—creating the resonance conditions that proved so devastating in Mexico City. The soil acts like a filter, amplifying certain frequencies while attenuating others, fundamentally altering the earthquake forces transmitted to the structure.
Real-World Applications: Where Soil-Structure Interaction Shapes Our Infrastructure
Understanding soil-structure interaction becomes critical in virtually every major construction project, but its importance varies dramatically based on soil conditions, structure type, and loading scenarios. The interaction effects are most pronounced in several key application areas that directly impact public safety and infrastructure performance.
High-rise buildings on soft soils represent the most critical application area. When tall, flexible structures are founded on compressible soil, the interaction can significantly lengthen the building's natural period and alter its seismic response. Our repository's FRAME.xls calculation (downloaded over 1,488 times with a 4.5-star rating), developed by community contributor Alex Tomanovich, provides the foundation for understanding how frame flexibility interacts with soil compliance to create system-level dynamic behavior.
Bridge structures experience particularly complex soil-structure interaction because their foundations often extend deep into varying soil layers while supporting dynamic traffic loads. The differential settlement and lateral soil pressures can create significant moments and forces not captured in traditional analysis. POLEFDN.xls (downloaded over 2,812 times with a 4.5-star rating) addresses the deep foundation analysis that forms the basis for understanding pile-soil-structure interaction in bridge applications.
Industrial facilities with heavy machinery must account for soil-structure interaction under both static loads and dynamic equipment forces. Machine foundations that appear adequately designed using rigid base assumptions can experience excessive vibrations when soil flexibility is considered. The interaction between foundation mass, soil stiffness, and machine operating frequencies creates complex dynamic systems that require careful analysis to prevent resonance conditions.
Retaining structures and earth-supported systems demonstrate soil-structure interaction in its most direct form, where the structure's primary function is to interact with soil masses. RETAINING WALL DESIGN (downloaded over 1,169 times with a 4.4-star rating) provides the analytical framework for understanding how wall flexibility affects earth pressure distribution and structural response.
The Hidden Complexity: Why Simple Foundations Become Engineering Puzzles
What appears straightforward in textbook foundation design becomes remarkably complex when soil-structure interaction enters the analysis. The classical approach of calculating foundation forces and then designing foundations to resist those forces breaks down because the foundation stiffness affects the force distribution, which affects the foundation design, creating an iterative problem with no simple closed-form solution.
Frequency coupling effects create the most significant complication in dynamic analysis. The structure and soil each have their own natural frequencies, but when coupled, they create a system with multiple natural frequencies that may bear little resemblance to either component alone. The coupled system frequencies are determined by solving the eigenvalue problem:
det([K_total] - ω²[M_total]) = 0
Where the total stiffness and mass matrices include both structural and soil contributions. This coupling can shift natural frequencies by 50% or more, completely changing the structure's seismic response.
Non-linear soil behavior adds another layer of complexity because soil properties change with strain level, loading history, and time. The linear impedance functions used in preliminary design represent only small-strain behavior, but large earthquakes or heavy loads can drive soils into non-linear ranges where stiffness degrades and damping increases. The soil's response becomes path-dependent, requiring sophisticated constitutive models:
τ = G_secant(strain, cycles) × strain + η_soil(strain, cycles) × strain_rate
Where the secant shear modulus G_secant and soil damping η_soil depend on both strain amplitude and loading cycle number.
Radiation damping occurs when dynamic foundation motion generates waves that propagate away from the foundation into the surrounding soil, carrying energy away from the structure. This geometric damping can significantly reduce structural response, but calculating it requires sophisticated analysis of wave propagation in layered soil media.
While these equations look intimidating on paper, our XLC add-in displays them as easily readable mathematical equations directly in Excel, transforming complex soil-structure interaction analysis into manageable calculations that build on your existing spreadsheet skills rather than requiring expensive specialized software.
Professional Approach: Ensuring Soil-Structure Interaction Reliability
Soil-structure interaction analysis demands a systematic approach that recognizes both the complexity of the physical phenomena and the practical limitations of analysis methods. Professional engineers must balance analytical sophistication with engineering judgment, understanding that no analysis is better than the quality of its input parameters and underlying assumptions.
The ExcelCalcs community shares a passion for making accurate calculations with MS Excel, providing a platform where engineers can access expert knowledge through our comments feature. This collaborative approach proves especially valuable in soil-structure interaction analysis, where the combination of geotechnical and structural expertise often reveals insights that single-discipline analysis might miss.
Professional practice requires careful attention to the hierarchy of analysis methods. Simple spring models provide initial estimates and help engineers understand the fundamental behavior, while sophisticated finite element models can capture detailed interaction effects for critical projects. The key lies in matching the analysis sophistication to the project importance and the reliability of available soil data.
Quality assurance becomes particularly critical because small changes in soil parameters can dramatically affect results. Professional engineers typically perform sensitivity analyses to understand how uncertainty in soil properties propagates through the interaction analysis. Our repository's worked solutions give engineers a head start in developing these parametric studies, building on existing Excel skills with a much faster learning curve than specialized geotechnical software.
Documentation standards for soil-structure interaction projects must clearly identify assumptions about soil behavior, analysis methods, and the range of validity for calculated results. The interaction between multiple engineering disciplines requires clear communication about how geotechnical parameters translate into structural analysis inputs, and how structural demands affect foundation design requirements.
Repository Showcase: Comprehensive Soil-Structure Interaction Solutions
Beyond our foundational analysis tools, engineers can access specialized calculations including BOEF.xls (1,273 downloads, 4.5-star rating), GRDSLAB.xls (2,058 downloads, 4.6-star rating), and PILEGRP.xls for complex foundation systems (1,103 downloads, 4.4-star rating).
For dynamic analysis applications, our repository includes MONORAIL.xls (1,267 downloads, 4.3-star rating), Basic Pressure Vessel Stress.xls for equipment foundation analysis (1,459 downloads, 3.9-star rating), and BMREACT.xls (1,141 downloads, 4.1-star rating). Seismic practitioners can utilize IBC 2006 Seismic Calc.xls for code-compliant force calculations, while wind engineers can access calculations designed for dynamic wind-structure interaction. This diversity ensures that regardless of your local code requirements or specific design challenges, our community has developed solutions to meet your soil-structure interaction analysis needs.
Start Your Soil-Structure Interaction Design Journey Today
Understanding soil-structure interaction transforms how engineers approach foundation design, seismic analysis, and dynamic response calculations. Our BOEF.xls Beam on Elastic Foundation calculation (downloaded over 1,273 times with a 4.5-star rating), developed by community contributor Alex Tomanovich, provides the analytical foundation for understanding how structural flexibility and soil compliance interact to create system-level behavior.
We extend our appreciation to Alex Tomanovich and the many community contributors who have shared their expertise in foundation analysis, dynamic response calculations, and soil-structure interaction modeling. Their dedication to advancing engineering practice through shared knowledge exemplifies the collaborative spirit that makes ExcelCalcs a trusted resource for professionals worldwide.
For just $99 for a 12-month subscription—insignificant compared to MathCAD, Mathematica, or Maple—you gain access to our entire repository of proven calculation templates, plus the XLC add-in that displays complex equations as readable mathematical notation. Students and teachers receive a 50% discount, and free trials are available to explore our platform's capabilities.
Join the ExcelCalcs community today and discover why thousands of engineers trust our templates for their most critical soil-structure interaction design challenges. Because when the ground beneath your structure matters as much as the structure itself, you need calculations that account for the complex dance between building and earth.
