When Engineering Warnings Go Unheeded: The I-295 Wall 22 Catastrophe

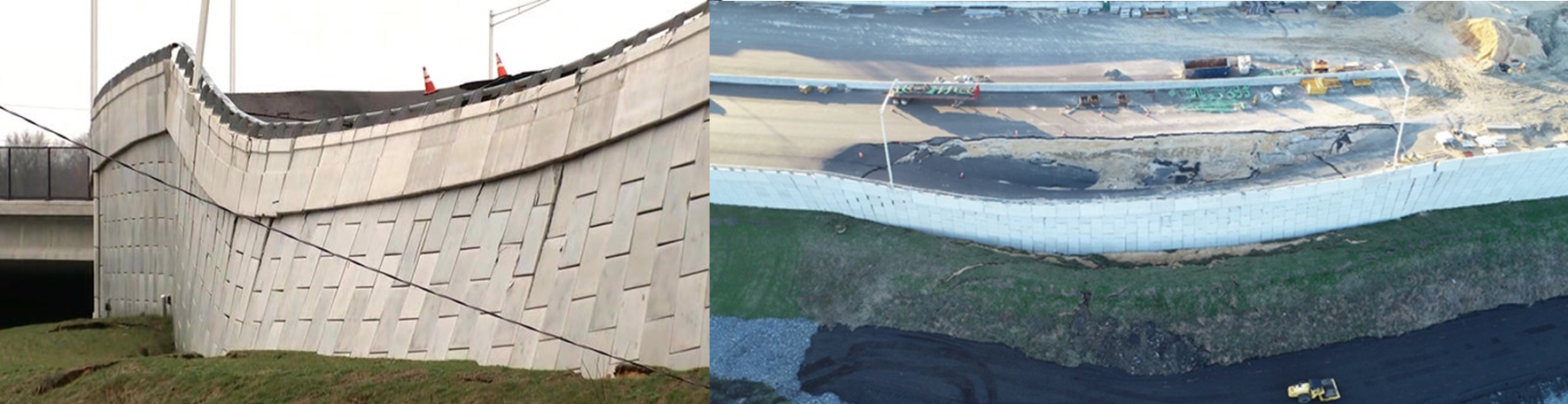

On March 25, 2021, at 11:47 AM, Wall 22 along Interstate 295 in New Jersey catastrophically failed, sending tons of soil and debris cascading onto the roadway below. The 30-foot-high retaining wall, part of the $900 million Direct Connection Project, had been showing signs of distress for two weeks before its spectacular collapse. What makes this failure particularly troubling is that the contractor, South State Inc., had submitted written warnings to the New Jersey Department of Transportation in November 2018—over two years before the collapse—expressing "severe concerns about the design from the get-go."
The forensic investigation revealed a cascade of engineering failures: inappropriate I-11 sand material was used for the embankment supporting the wall, high groundwater conditions were inadequately addressed, and the column-supported embankment system proved unsuitable for the foundation. The failure occurred despite early warning signs including visible wall distress and documented contractor concerns that were apparently dismissed by state engineers. The collapse added an estimated $92 million to the project cost and further delayed an already troubled construction project that was originally scheduled for completion in 2022 but has been pushed to 2028.
This disaster exemplifies the fundamental challenge in retaining wall design: these structures must resist enormous lateral earth pressures while maintaining stability under varying soil and water conditions. The basic principle governing retaining wall stability involves balancing the driving forces from soil pressure against the resisting forces from the wall's weight and structural capacity.
Lateral Earth Pressure = Earth Pressure Coefficient × Unit Weight × Height
P = K × γ × H
Where P is the lateral earth pressure, K is the earth pressure coefficient (ranging from 0.3 for active conditions to 3.0 or higher for passive conditions), γ is the soil unit weight, and H is the wall height. The Wall 22 failure demonstrated that when K values are underestimated or soil conditions change from design assumptions, catastrophic failure becomes inevitable.
The Engineering Foundation: Understanding Earth Pressure and Wall Mechanics
Retaining walls represent one of civil engineering's most challenging design problems: creating structures that can resist the immense lateral forces generated by soil while maintaining stability under varying loading and environmental conditions. These seemingly simple structures must balance complex interactions between soil mechanics, structural engineering, and hydrology to prevent the kind of catastrophic failure that occurred on I-295.
The fundamental physics behind retaining wall behavior centers on earth pressure theory, developed by engineers like Rankine and Coulomb in the 18th and 19th centuries. When soil is retained vertically rather than allowed to assume its natural angle of repose, it exerts lateral pressure against the retaining structure. This pressure varies with depth and depends on soil properties, wall movement, and groundwater conditions.
Active Earth Pressure Coefficient = Function of Soil Friction Angle
K_a = tan²(45° - φ/2)
Where K_a is the active earth pressure coefficient and φ is the soil's internal friction angle. For typical soils with φ = 30°, this yields K_a = 0.33, meaning the lateral pressure is one-third of the vertical pressure. However, if the wall cannot move to mobilize active conditions, the pressure can increase dramatically.
Passive Earth Pressure Coefficient = Maximum Soil Resistance
K_p = tan²(45° + φ/2)
Where K_p represents the maximum resistance the soil can provide. For the same 30° friction angle, K_p = 3.0, demonstrating why passive resistance is so valuable in retaining wall design but requires careful consideration of soil displacement requirements.
The structural design of retaining walls must account for multiple failure modes: overturning, sliding, bearing capacity failure, and structural failure of the wall elements themselves. Each mode requires different analysis approaches and safety factors.
Overturning Safety Factor = Resisting Moments ÷ Overturning Moments
SF_ot = ΣM_resist / ΣM_overturn ≥ 2.0
Where resisting moments come from the wall's weight and any soil weight above the foundation, while overturning moments result from lateral earth pressure. The Wall 22 failure likely involved inadequate consideration of these moment equilibrium requirements under the actual site conditions.
Real-World Applications: Where Retaining Walls Shape Our Infrastructure
Retaining walls form the backbone of modern infrastructure development, enabling construction on sloped sites and maximizing usable space in urban environments where every square foot carries premium value. From basement excavations in Manhattan to highway cuts through mountainous terrain, retaining walls make possible the infrastructure systems that support modern society.
Highway construction represents one of the most demanding applications for retaining wall design, where structures must resist not only static earth pressures but also dynamic loads from traffic, thermal effects, and seismic forces. The I-295 project, where Wall 22 failed, exemplifies the challenges of highway retaining walls: 30-foot heights, variable soil conditions, and the need to support elevated roadways with minimal settlement tolerances.
Our repository's RETAINING WALL DESIGN calculation (downloaded over 1,169 times with a 4.4-star rating), developed by community contributor Alex Tomanovich, addresses these complex design scenarios. This comprehensive tool analyzes cantilever retaining walls for stability against overturning, sliding, and bearing capacity failure while checking structural adequacy of the wall elements. The calculation handles multiple load combinations and provides detailed analysis of moments, shears, and deflections that engineers need for safe design.
Urban development projects frequently require retaining walls to maximize buildable area on sloped sites or to create level building pads from irregular topography. Basement excavations in dense urban areas often require temporary and permanent retaining systems that must work within tight spatial constraints while protecting adjacent structures from damage due to ground movement.
Commercial and industrial facilities present unique retaining wall challenges where structures must accommodate not only earth pressures but surcharge loads from heavy equipment, material storage, and building foundations. Our repository's WALLPRES.xls calculation (downloaded over 958 times with a 4.6-star rating), also contributed by Alex Tomanovich, specializes in analyzing wall pressures from various surcharge loading conditions, providing engineers with the tools needed to design walls for these demanding applications.
Bridge abutments and transportation infrastructure often require retaining walls capable of resisting the combination of earth pressure, live load surcharges from traffic, seismic forces, and thermal effects. These structures must maintain tight deflection tolerances to prevent damage to approach slabs and ensure smooth traffic flow while providing decades of reliable service.
The Hidden Complexity: Why Retaining Wall Design Defies Simple Solutions
What appears straightforward in textbooks—calculating earth pressure and designing a wall to resist it—becomes extraordinarily complex when engineers must account for the myriad factors that influence real-world retaining wall performance. Soil variability represents the primary challenge, as subsurface conditions rarely match the uniform properties assumed in simplified analyses, and small changes in soil strength or groundwater can dramatically affect wall stability.
Water presents perhaps the greatest unknown in retaining wall design, as hydrostatic pressure can double or triple the loads on a wall while simultaneously reducing soil strength through increased pore pressures. The Wall 22 failure investigation specifically cited "high groundwater condition" as a contributing factor, demonstrating how water-related effects can overwhelm even well-designed structures when not properly anticipated.
Total Lateral Pressure = Earth Pressure + Water Pressure + Surcharge Effects
P_total = K_a × γ × H + γ_w × H_w + q × K_a
Where γ_w is the unit weight of water, H_w is the height of water behind the wall, and q represents surcharge loads. This equation shows how multiple pressure sources combine to create the total lateral force, but it cannot capture the complex interactions between these components under varying conditions.
Construction sequence effects add another layer of complexity, as retaining walls often experience their highest loads during construction when backfill is placed rapidly and drainage systems may not be fully functional. Compaction of backfill can generate pressures significantly higher than static earth pressure theory predicts, particularly if the wall cannot move to mobilize active pressure conditions.
Dynamic Pressure During Compaction = Static Pressure × Dynamic Amplification Factor
P_dynamic = P_static × DAF
Where DAF can range from 1.5 to 3.0 depending on compaction equipment and procedures. Many retaining wall failures occur during construction when these amplified pressures exceed the wall's capacity before it reaches its final configuration.
Long-term performance introduces additional uncertainties as creep, weathering, and degradation of materials affect wall capacity over time. Drainage systems may clog, soil properties may change due to seasonal variations, and structural elements may deteriorate, all contributing to potential failure modes that are difficult to predict during initial design.
While these complex interactions make retaining wall analysis challenging, our XLC add-in displays all governing equations as easily readable mathematical expressions directly in Excel, transforming sophisticated soil-structure interaction calculations into manageable engineering analysis. The add-in's formula verification feature allows engineers to check their retaining wall calculations against established theory while maintaining the familiar Excel environment.
