When Steel Surrenders to Storm: The San Marcos Building Collapse
July 27, 2011, San Marcos, Texas. As thunderstorms swept across central Texas with winds exceeding 70 mph, a newly constructed systems-engineered metal building began its final, catastrophic dance. In mere minutes, the structure that had stood proudly just days before lay twisted and scattered across the construction site. OSHA's subsequent investigation revealed the devastating truth: anchor bolts had pulled cleanly out of the concrete foundation, leaving behind gaping holes where steel columns once stood anchored. The failure wasn't in the steel frame, the wind loads, or even the foundation concrete—it was in the critical interface where steel meets concrete.

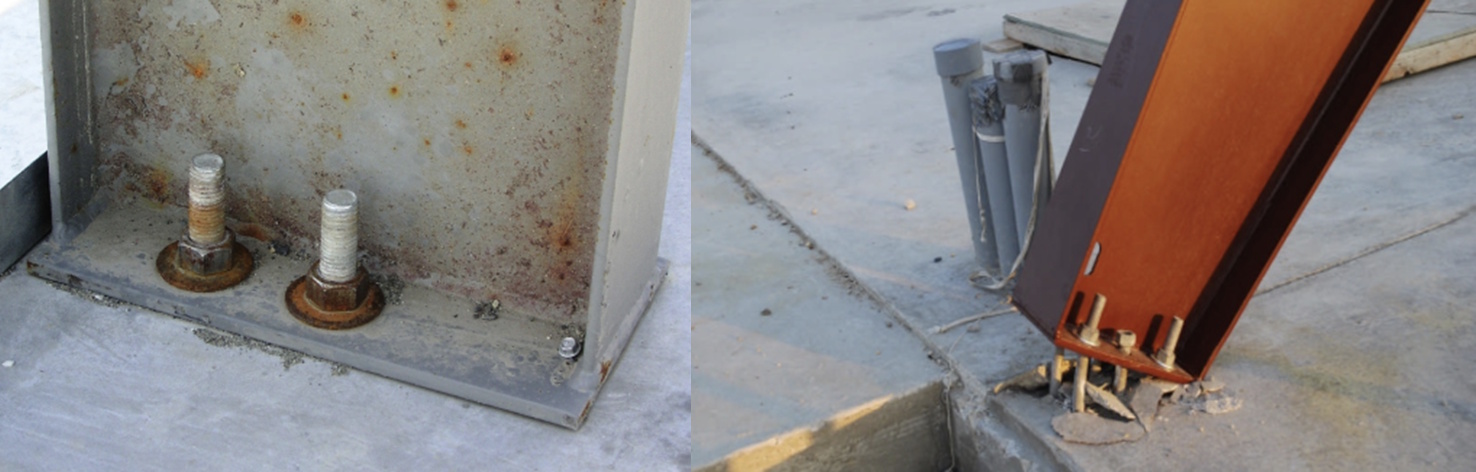

The forensic evidence told a stark story: perfectly formed concrete pullout cones surrounding each failed anchor bolt, indicating that the connection between steel and concrete had been fundamentally inadequate for the applied loads. What should have been a robust transfer of building loads into the foundation instead became a textbook example of concrete breakout failure, where the steel base plates literally lifted away from their foundations as anchor bolts extracted from the concrete like corks from a bottle.
The fundamental relationship that failed was elegantly simple yet devastatingly underestimated:
N_cb = k_c × λ_a × √(f'_c) × h_ef^1.5
Where N_cb represents the concrete breakout strength, k_c is a factor for concrete type, λ_a accounts for lightweight aggregate, f'_c is the concrete compressive strength, and h_ef is the effective embedment depth. This equation, mandated by ACI 318 Appendix D, governs whether anchor bolts remain embedded or pull out catastrophically under tension loads—the difference between structural integrity and total collapse.
The Engineering Foundation: Understanding Base Plate Behavior
Base plate design represents one of structural engineering's most fundamental challenges: efficiently transferring concentrated column loads into distributed concrete stresses. Think of a base plate as a "snowshoe for buildings"—it spreads the intense forces from a steel column across a larger concrete surface, preventing the concrete from crushing while maintaining structural continuity.
The primary load transfer mechanism involves bearing stress distribution beneath the plate:
f_bearing = P_column / A_effective
Where f_bearing is the bearing stress on concrete, P_column represents the total column load, and A_effective is the effective bearing area. This seemingly straightforward relationship becomes complex when combined loading occurs.
For moment connections, the governing equation becomes:
f_max = P_column / A_effective + M_applied × c / I_effective
This equation reveals how axial loads and bending moments combine to create highly non-uniform stress distributions beneath the base plate. The maximum stress f_max occurs at the plate edge, where M_applied represents the applied moment, c is the distance to the extreme fiber, and I_effective is the effective moment of inertia of the base plate system.
The critical anchor bolt tension calculation accounts for prying action and plate flexibility:
T_bolt = T_direct + T_prying = M_applied / d_bolt_spacing + Q × T_direct
Where T_direct represents the direct tension from moment equilibrium, T_prying accounts for additional forces from plate bending, and Q is the prying action factor—typically ranging from 0.1 to 0.5 depending on plate thickness and geometry.
This mathematical foundation explains why base plate failures during Northridge were so prevalent: the simplified design methods of the era failed to account for prying action, dynamic load amplification, and the actual load paths through flexible plates.
Real-World Applications: Where Base Plates Shape Our Infrastructure
Base plate connections form the critical foundation interface in virtually every steel structure, from the smallest industrial buildings to the tallest skyscrapers. In high-rise construction, base plates must transfer column loads exceeding 5,000 kips while resisting overturning moments from wind and seismic forces that can reach 50,000 kip-feet or more.
Industrial facilities present unique challenges where heavy machinery creates dynamic loads and vibrations that must be transmitted through base plate connections without failure. Petrochemical plants utilize base plates designed for 2,000-pound live loads with temperature variations exceeding 200°F, requiring thermal expansion considerations and specialized anchor bolt materials.
Our repository's BASEPLT9.xls calculation (downloaded over 1,963 times with a 4.3-star rating), developed by community contributor Alex Tomanovich, addresses these complex design scenarios with comprehensive analysis including prying action, anchor bolt design, and concrete breakout verification according to both AISC and ACI standards.
Stadium and arena structures demand base plates capable of handling massive cantilever loads from long-span roof systems, often requiring plates exceeding 4 feet by 6 feet with 32 or more anchor bolts. Bridge pier connections represent another critical application where base plates must resist hurricane-force winds, seismic loads, and the constant dynamic loading from traffic while maintaining fatigue resistance over 100-year design lives.
Marine and offshore structures push base plate design to its limits with corrosive environments, wave loading, and the necessity for underwater installation and inspection capabilities. These applications often require stainless steel plates with specialized coatings and anchor bolt systems designed for replacement without major structural modifications.
The Hidden Complexity: Why Simple Connections Become Engineering Nightmares
Base plate design appears deceptively straightforward—a steel plate with some bolts—but the reality involves intricate interactions between materials, load paths, and failure modes that can confound even experienced engineers. The first major complication arises from plate flexibility and its effect on load distribution.
Thin base plates under high loads don't distribute stress uniformly across their area. Instead, they create "pressure cones" beneath heavily loaded regions while lifting off in other areas. This behavior invalidates the simple uniform stress assumption and requires sophisticated analysis accounting for plate bending:
σ_plate = 6 × M_plate / (t_plate² × w_effective)
Where σ_plate represents the bending stress in the plate, M_plate is the applied moment causing plate bending, t_plate is the plate thickness, and w_effective is the effective width resisting the moment.
Anchor bolt behavior introduces additional complexity through the interaction of steel yielding, concrete breakout, and bond slip. The actual bolt force includes contributions from direct tension, shear, and prying action:
T_total = √[(T_applied + T_prying)² + (V_shear × 1.2)²]
This equation shows how shear forces amplify tension demands, while the prying action factor depends on plate geometry and can increase bolt forces by 50% or more.
Construction tolerances create another layer of complexity that's often overlooked in design. Anchor bolt positioning errors of just ±¼ inch can create eccentricities that double the forces in critical bolts, while concrete surface irregularities can concentrate loads in unpredictable patterns.
While these equations look intimidating on paper, our XLC add-in displays them as easily readable mathematical equations directly in Excel, transforming complex theoretical relationships into practical design tools that engineers can verify and understand.
Professional Approach: Ensuring Base Plate Connection Reliability
Modern base plate design demands a systematic approach that addresses multiple failure modes while maintaining constructability and economic feasibility. Professional engineers must verify steel yielding, concrete bearing, anchor bolt tension and shear, concrete breakout (both individual and group), concrete side-face blowout, and anchor bolt pullout—each with its own load combinations and safety factors.
The ExcelCalcs community shares a passion for making accurate calculations with MS Excel, providing a platform where engineers can access expert knowledge through our comments feature. This collaborative environment enables peer review of calculation methods and real-world validation of theoretical approaches, ultimately improving the reliability of base plate designs across the industry.
Professional documentation requires clear presentation of assumptions, load paths, and safety factors. Our repository's worked solutions give engineers a head start in establishing these professional standards, building on existing Excel skills with a much faster learning curve than specialized finite element software that often obscures the fundamental mechanics.
Quality assurance through comments feature allows practicing engineers to share lessons learned from field installations, contractor feedback, and long-term performance observations. This collective knowledge proves invaluable in refining design approaches and identifying potential constructability issues before they become field problems.
Critical aspects of professional base plate design include coordination with anchor bolt suppliers for realistic tolerances, detailing that facilitates field installation and inspection, consideration of construction sequencing and temporary bracing requirements, and provision for future modifications or equipment changes that might affect loading conditions.
Repository Showcase: Comprehensive Base Plate Solutions
Beyond our flagship BASEPLT9.xls analysis, engineers can access specialized calculations including BOLTGRP.xls (1,320 downloads, 4.6-star rating), SimpleBoltCalc.xls (1,302 downloads, 3.9-star rating), and gowelding.com Weld Calculations for complete connection design (1,567 downloads, 4.5-star rating).
For anchor bolt design verification, our repository includes Appendix D - Anchor Bolt Anchorage ACI 318 (1,427 downloads, 4.5-star rating), Bolt spacing and edge distances.xls (1,200 downloads, 3.9-star rating), and Anchor Reinforcement for supplementary reinforcing design (955 downloads, 4.3-star rating). International practitioners can utilize calculations designed for various design codes, while specialized applications can access Detailed Bolted Joint Calculations (790 downloads, 4.5-star rating) for complex loading scenarios.
Additional supporting calculations include FLRPLATE.xls for plate bending analysis (1,190 downloads, 4.6-star rating), WELDGRP.xls for weld group verification (803 downloads, 4.6-star rating), and STEEL_CONNECTIONS.xlsx for comprehensive connection analysis (904 downloads, 4.5-star rating). This diversity ensures that regardless of your local code requirements or specific design challenges, our community has developed solutions to meet your needs.
Start Your Base Plate Design Journey Today
Whether you're designing your first industrial building base connection or your hundredth high-rise column base, the BASEPLT9.xls calculation provides the comprehensive analysis tools you need. With over 1,963 downloads and a 4.3-star rating from practicing engineers, this calculation has proven its reliability in real-world applications.
Our heartfelt appreciation goes to Alex Tomanovich and the many other community contributors who have shared their expertise to make these essential design tools available to engineers worldwide. Their dedication to advancing the profession through shared knowledge exemplifies the collaborative spirit that makes the ExcelCalcs community so valuable.
Join the ExcelCalcs community today with a $99 twelve-month professional subscription—insignificant compared to MathCAD, Mathematica, or Maple—and gain access to our entire repository of proven calculation templates. Students and teachers receive a 50% discount, and free trials are available for all calculations. Experience firsthand why thousands of engineers trust our templates for their most critical base plate design challenges.
Because when steel meets concrete, you need calculations that have already proven themselves in the field.
