When Codes Catch Up to Reality: The Loma Prieta Awakening

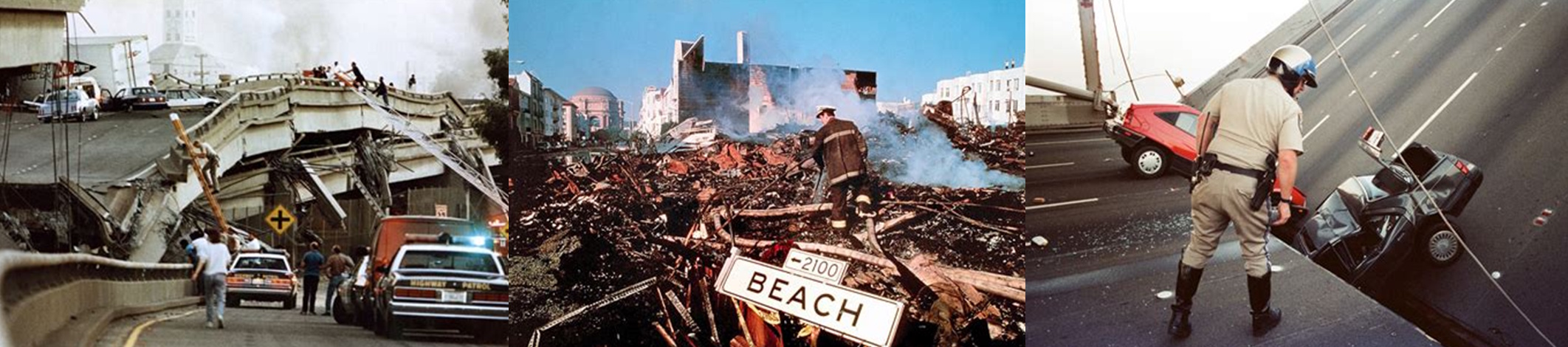

October 17, 1989, 5:04 PM. The Loma Prieta earthquake struck Northern California with devastating force, but it wasn't just the ground shaking that caught engineers off guard—it was what happened to their anchor bolt designs. Across the San Francisco Bay Area, structures that hhad been designed according to the best available standards suffered unexpected anchor bolt failures, with bolts pulling out of concrete foundations in ways that existing design methods had never predicted.
The earthquake revealed a shocking reality: traditional anchor bolt design methods were fundamentally flawed, treating concrete as an infinite medium and ignoring the complex failure mechanisms that actually govern anchor performance. Engineers watched in dismay as anchor bolts that should have had adequate capacity according to conventional calculations failed catastrophically through concrete breakout, side-face blowout, and combined failure modes that weren't even recognized in design codes.
The aftermath of Loma Prieta, followed by similar observations from the 1994 Northridge earthquake, sparked a revolution in anchor bolt design thinking. Traditional methods based on allowable stress design and simplified concrete capacity equations gave way to a sophisticated new approach: ACI 318 Appendix D, which introduced the Concrete Capacity Design (CCD) method based on decades of experimental research and failure analysis.
The fundamental shift was from simple tension capacity calculations:
T_allow = f_y × A_s / FS
To comprehensive failure mode evaluation:
φN_n = min(φN_sa, φN_cb, φN_pn, φN_sb)
Where φN_n represents the design strength, and the minimum is taken among steel failure (N_sa), concrete breakout (N_cb), pullout (N_pn), and side-face blowout (N_sb). This equation revolutionized anchor design by forcing engineers to consider all possible failure modes rather than assuming steel failure would always govern.
The Engineering Foundation: Understanding ACI 318 Appendix D Methodology
ACI 318 Appendix D represents one of the most significant advances in structural design methodology of the past 30 years, transforming anchor bolt design from empirical rules-of-thumb to scientifically-based design procedures. The Concrete Capacity Design method recognizes that anchor bolts fail through multiple distinct mechanisms, each governed by different parameters and requiring separate evaluation.
The steel failure mode follows traditional reinforcing steel design principles:
N_sa = A_se × f_uta
Where N_sa is the steel strength, A_se is the effective cross-sectional area, and f_uta is the tensile strength of the anchor material. This mode typically governs for small diameter anchors with large embedment depths in strong concrete.
The concrete breakout failure mode represents the most significant innovation in Appendix D, recognizing that anchors fail by pulling out cone-shaped pieces of concrete:
N_cb = (A_Nc / A_Nco) × Ψ_ec,N × Ψ_ed,N × Ψ_c,N × Ψ_cp,N × N_b
This complex equation accounts for the projected failure area (A_Nc), edge distance effects (Ψ_ec,N), member depth effects (Ψ_ed,N), concrete cracking (Ψ_c,N), post-installed anchor effects (Ψ_cp,N), and the basic concrete breakout strength (N_b).
The basic concrete breakout strength follows the fundamental relationship:
N_b = k_c × λ_a × √(f'_c) × h_ef^1.5
Where k_c is a constant for anchor type, λ_a is a lightweight aggregate factor, f'_c is concrete compressive strength, and h_ef is the effective embedment depth. The 1.5 power on embedment depth shows why anchor depth has such a dramatic effect on capacity.
For pullout failure, the design strength becomes:
N_pn = Ψ_c,P × A_brg × f'_c
Where Ψ_c,P accounts for cracking effects, A_brg is the net bearing area, and f'_c is the concrete compressive strength. This mode typically governs for headed anchors and undercut anchors with large bearing areas.
Side-face blowout becomes critical for anchors near free edges:
N_sb = 160 × c_a1 × √(A_brg × f'_c)
Where c_a1 is the distance to the nearest edge and A_brg is the bearing area. This mode often governs for anchors close to member edges, regardless of embedment depth.
Real-World Applications: Where Appendix D Shapes Modern Construction
The ACI 318 Appendix D methodology has transformed anchor bolt design across virtually every sector of construction, from the smallest equipment foundations to the largest industrial facilities. In high-rise construction, base plate connections now routinely accommodate column loads exceeding 5,000 kips while resisting overturning moments from wind and seismic forces that create anchor tensions approaching 1,000 kips per bolt.
Industrial facilities utilize Appendix D methods for equipment foundations subject to dynamic loading, thermal cycling, and operational forces that create complex stress states in anchor bolt systems. Petrochemical plants employ anchor designs that must resist hurricane forces, explosion loads, and thermal expansion effects while maintaining leak-tight integrity for decades of service.
Our repository's Appendix D - Anchor Bolt Anchorage ACI 318 (downloaded over 1,427 times with a 4.5-star rating), developed by experienced community contributors, addresses these complex design scenarios with comprehensive analysis including all Appendix D failure modes, edge distance effects, and group action calculations according to the latest ACI 318 provisions.
Bridge construction demands anchor bolt systems capable of transferring massive loads from bridge bearings to substructure elements while accommodating thermal movement, seismic loading, and impact forces. Modern bridge anchor systems utilize Appendix D methods to ensure adequate capacity for uplift forces that can reach 2,000 kips while maintaining ductile failure modes for seismic resistance.
Nuclear and critical facilities push anchor design to the highest levels of sophistication, with safety-related equipment foundations requiring redundant load paths, extensive analysis documentation, and qualification testing that validates Appendix D predictions. These applications often involve anchor groups with 50 or more bolts arranged in complex patterns with detailed consideration of load distribution and failure mode interaction.
Power generation facilities employ specialized anchor applications including turbine foundations where dynamic amplification effects can double static loads, and cooling tower structures where uplift forces from wind loading create critical anchor tension conditions that must be evaluated using Appendix D methods to ensure structural integrity.
The Hidden Complexity: Why Modern Anchor Design Defies Simple Solutions
Appendix D anchor design appears systematic—evaluate each failure mode and take the minimum—but the reality involves complex interactions between failure modes, geometric effects, and loading conditions that require deep understanding of concrete behavior and failure mechanics. The first major complication arises from the influence of edge distances on concrete breakout capacity, where small changes in anchor location can dramatically affect design strength.
The edge distance modification factor creates highly nonlinear capacity curves:
Ψ_ec,N = (1 + 2 × c_a / 3 × h_ef) / (1 + c_a / 1.5 × h_ef)
This relationship shows how anchors near edges can lose 50% or more of their breakout capacity compared to anchors in large concrete members, even when embedment depth remains constant.
Group effects introduce additional complexity through overlapping failure surfaces that reduce the effective capacity of individual anchors. For closely spaced anchor groups, the projected failure area can be significantly less than the sum of individual projected areas:
A_Nc = (c_a1 + s/2) × (c_a2 + s/2)
Where s is the anchor spacing and c_a1, c_a2 are edge distances. This equation demonstrates why anchor spacing optimization becomes critical for efficiency in group applications.
Supplementary reinforcement effects allow increased capacity when properly detailed reinforcement intercepts the failure surface:
N_cb,modified = N_cb + A_s,supp × f_y × efficiency_factor
The efficiency factor depends on reinforcement location, anchorage details, and loading conditions, requiring careful consideration of load path mechanics and reinforcement development.
Interaction between failure modes creates additional complexity when multiple modes have similar calculated capacities. The actual failure may involve progressive failure through multiple modes, requiring advanced analysis techniques that go beyond simple minimum capacity calculations.
While these equations look intimidating on paper, our XLC add-in displays them as easily readable mathematical equations directly in Excel, transforming complex concrete mechanics into practical design tools that engineers can verify against established code procedures.
Professional Approach: Ensuring Anchor System Reliability
Modern anchor bolt design using ACI 318 Appendix D demands a systematic approach that addresses all potential failure modes while accounting for installation tolerances, long-term effects, and load redistribution in anchor groups. Professional engineers must evaluate all four primary failure modes for tension loading, check corresponding modes for shear loading, consider interaction effects for combined tension and shear, and verify constructability including reinforcement congestion and installation access.
The ExcelCalcs community shares a passion for making accurate calculations with MS Excel, providing a platform where engineers can access expert knowledge through our comments feature. This collaborative environment enables sharing of Appendix D application experiences, installation challenges, and field performance observations that validate design approaches and identify potential improvement areas.
Professional documentation requires clear specification of anchor types, installation procedures, inspection requirements, and design calculations that demonstrate compliance with all applicable Appendix D provisions. Our repository's worked solutions give engineers a head start in establishing these professional standards, building on existing Excel skills with a much faster learning curve than specialized finite element software.
Critical aspects of professional Appendix D design include coordination with manufacturers for anchor product data and installation procedures, specification of concrete strength and placement requirements that ensure design assumptions are met, consideration of construction sequence effects on anchor performance, and establishment of inspection and testing programs appropriate for structural criticality.
Quality assurance through comments feature allows practicing engineers to share installation challenges, testing experiences, and long-term performance observations that help refine design approaches and improve specification requirements. This collective knowledge proves invaluable in developing robust anchor specifications that balance safety requirements with practical construction considerations.
Repository Showcase: Comprehensive Appendix D Solutions
Beyond our flagship ACI 318 Appendix D calculation, engineers can access specialized calculations including Appendix D - Anchor Bolt Anchorage (1,295 downloads, 4.3-star rating), anchor reinforcement design tools, and comprehensive anchor group analysis that addresses load distribution and failure mode interaction effects.
For specialized applications, our repository includes post-installed anchor design calculations using various installation methods, seismic anchor design procedures that address special detailing requirements for high seismic zones, fatigue evaluation tools for anchors subject to repeated loading, and anchor design for special loading conditions including sustained tension and environmental effects.
Additional supporting calculations include anchor bolt layout optimization tools that maximize capacity while minimizing material costs, construction tolerance analysis for anchor positioning accuracy requirements, long-term creep and relaxation analysis for sustained loading applications, and anchor testing and inspection procedures that validate installation quality.
International practitioners can access calculations designed for various design codes and anchor standards including ICC-ES acceptance criteria, European Technical Assessment procedures, and specialized industry standards for nuclear, offshore, and other critical applications. This diversity ensures that regardless of your local code requirements or specialized application needs, our community has developed proven solutions to meet your anchor design challenges.
